Oписание продукта

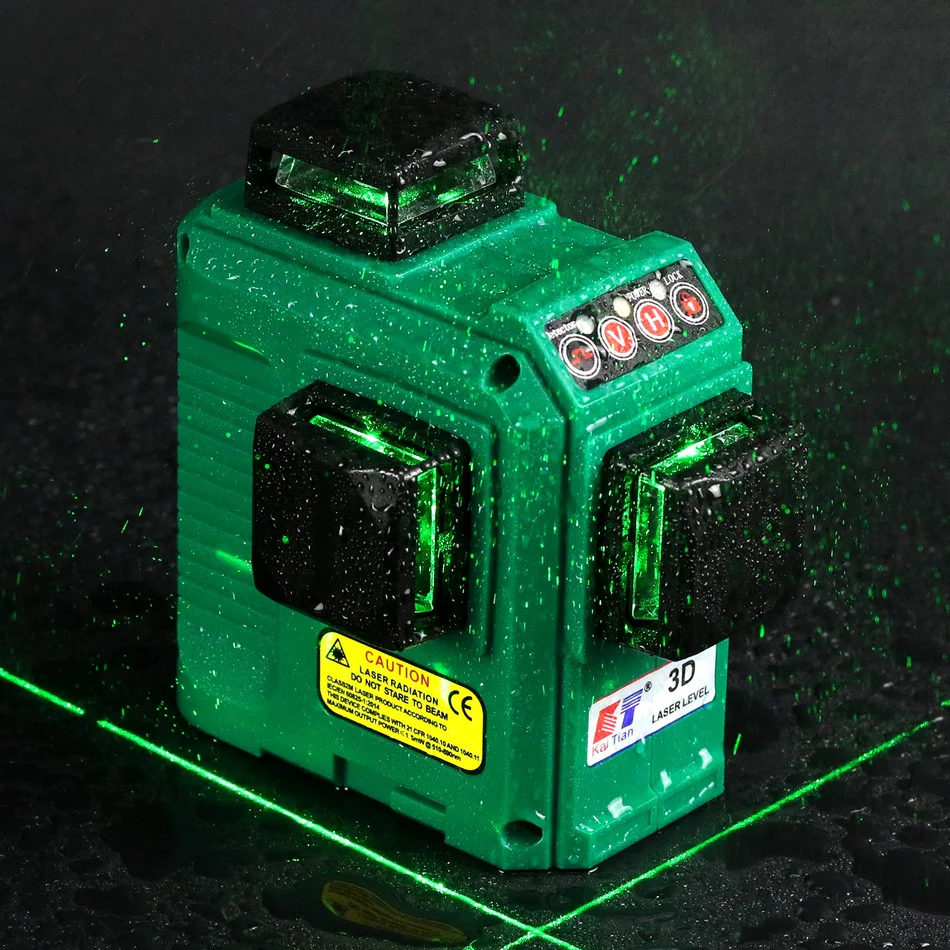

Kaitian Laser Level Green 12 Lines Nivel Laser 3D 360 Rotary Line Receiver Function Construction Tools Tripod for Level Lazer 3D







960X400 MR3D5



950x340_01950x340_02950x340_03



22





12 lines





magnetic



Kaitian Green Laser Level 12 Lines Nivel Laser Model Number  KT- MG3D7LA  / KT-MG3D7LAD / KT-MG3D7LAF



Kaitian Green Line Laser Level 12 Lines 3D Nivel Laser  Specification

This laser level has three laser windows, each window can launch 4 laser lines,totally 12 laser lines
( 8 Vertical Line, 4 Horizontal Line,4 laser lines combine to a plane).
Waterproof grade: IP54
Wavelength:532nm<1mw
Laser class:II
Damping Type: Magnetic
Leveling duration:<= 4s
Laser Level Line Width at 10M: 4.5mm
Horizontal,Vertical Precision: +- 2mm @ 10M
Orthotropic accuracy: 90 degree   +-  30"
Leveling Range:  +- 4 (Degree)
Working time:
6 Hrs /18650  Rechargeable Lithium Battery
Working Temperature: 0 to 40    (Centigrade)
Storage Temperature: -20 to 60 (Centigrade)

KaiTian  Green Laser Level 12 Lines Packing List
Choose different 3D Laser Level Green product models in Color.

2 types of power supply
18650 Rechargeable Lithium Battery x 1pcs
AC 100-240v Adapter

Laser Level automatic leveling mode
Once the pendulum is in unlocked condition,the instrument will be self-leveling within 4 degrees, when the
unit is using out of the leveling range,laser lines and main indicator will keep flickering

Laser Level Tilt  Function
Switch to Lock Status, Press D button 2 second .
Laser level would not be flickering in any angle.
To operate in this tilt function, you need an angle adjusted bracket to work with it.

Laser Level Receiver function
In indoor working radius is 10 meters,if use outdoor receiver working radius can be up to 50 meters.
Outdoor Receiver  frequency   within 4.5 ~ 10 KHZ



combination

tilt functionOUTDOORwith receiverreceiverlines precisionlight 2

floor

baseinterfaceancode and cathodeBATTERY 2POWER PLUGS



Kaitian Laser Level AB03 04

Kaitian Laser Level AB03 06



Kaitian Laser Level T1503 min maxKaitian Laser Level T1503 VIEWKaitian Laser Level T1503 weight



Kaitian Green Laser Level 12 Lines Nivel Laser Model Number  KT- MG3D7LA  / KT-MG3D7LAD / KT-MG3D7LAF

Kaitian Green Laser Level 12 Lines 3D Application Area

Home improvement,detection and location,lofts and elevations,and all other interior and exterior (with optional receiver or detector)Construction and layout.


Kaitian Green Laser Level 12 Lines 3D Nivel Laser Working Advice:

Always use the centre of the lasser line for marking.The width of the laser line changes with the distance.

Safety Notes:
The measuring tool produces laser class 2 laser radiation according to IEC 60825-1.This can lead to persons
being blinded,do not direct the laser beam at persons or animals and do not stare into the direct or
reflected laser beam yourself.

Do not let children use the 3D laser level measuring tool without supervision.
Do not operate the measuring tool in explosive environments,such as in the presence of flammabel liquids,
gases or duxts.




Thank you for choose Kaitian Laser Level Green 12 Lines Nivel Laser 3D 360 Rotary Line Receiver Function Construction Tools Tripod for Level Lazer 3D
