TCP/IP 4 doors access control panel access control board C3 400 door access control system with power supply and protect box

TCP/IP 4 doors access control panel access control board C3 400 door access control system with power supply and protect box
  • Продавец
  • Список ценUS $255.88piece
  • Продажная ценаUS $255.88piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,5 (786)

Oписание продукта





Note: The surface of device is waterproof, in order to use it long time, please not put it into the water or use it in rain. When the surface has some water drop, it is normal for working.Usually, we will delivery blue keyfobs. If you want to other color keyfobs, please leave message to us. Thanks!

Item Description


1. Specifications of Access Controller:

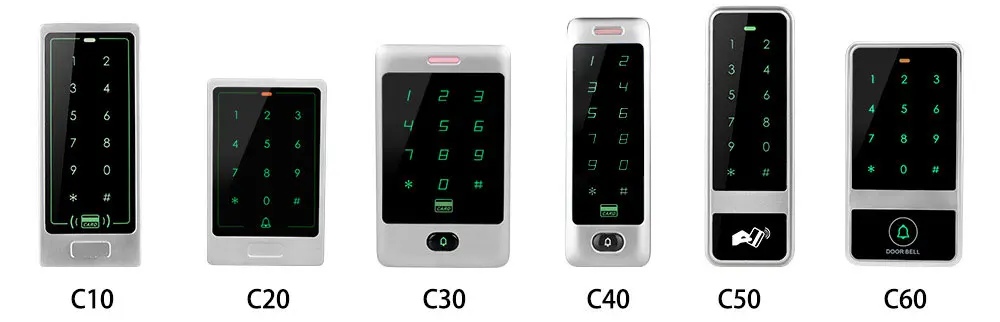

  1. Model No.: C10~C60
  2. Shell Material: Aluminium alloy
  3. Touch Panel: acrylic glass

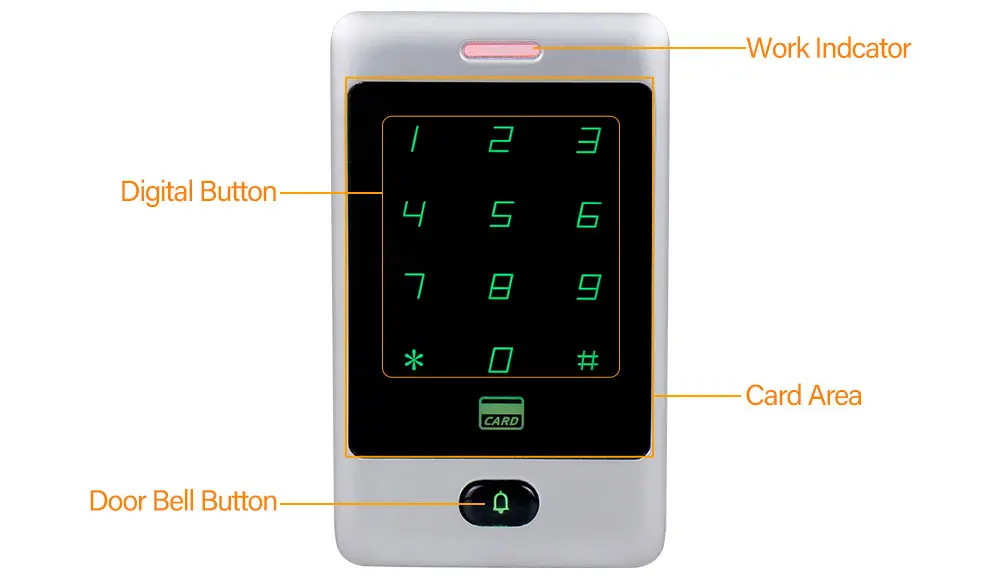

  4. With doorbell button and green backlight
  5. Proximity Reader Frequency: 125KHz
  6. Compatible Cards: EM or EM compatible cards
  7. Card Reading Distance: 1-15CM
  8. Door Open Mode: Support Card, password, card+password
  9. User capacity: 8000users
  10. Can connect with a Weigand 26 and Weigand 34 card reader
  11. Full programming from the keypad
  12. Humanized tamper alarm function
  13. Can set up a management card
  14. Active and passive lock signal output
  15. Imported double point relay output signal
  16. Contactless for RFID transponder technology
  17. Connection for external release button (Exit button)
  18. Does not need to connect on computer, it can works alone
  19. The same series of access control support data copy and backup
  20. Can be used when the password read head and one machine


 Technical Parameters:​C10-C60_04

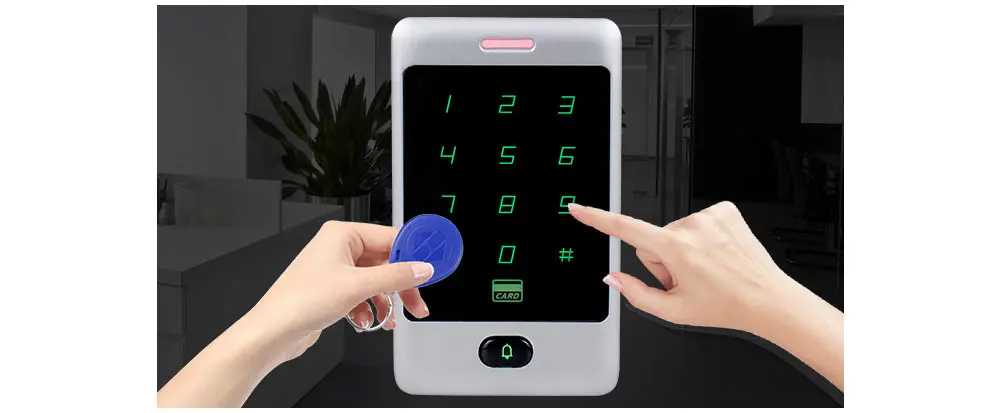

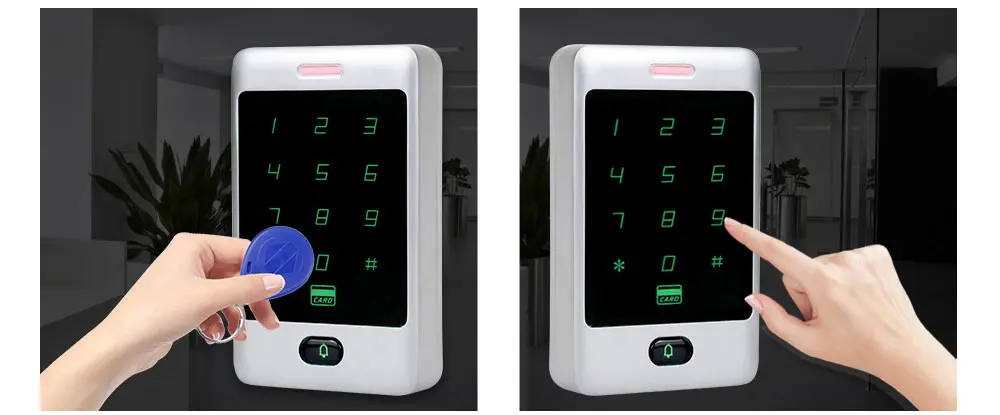

 Tree ways to open door: ​RFID Card, password, RFID Card+password

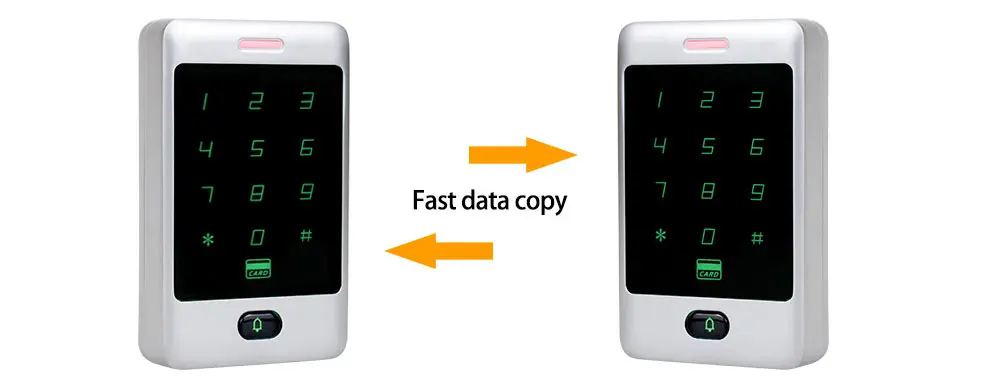

 The same series of access control support data copy and backup:

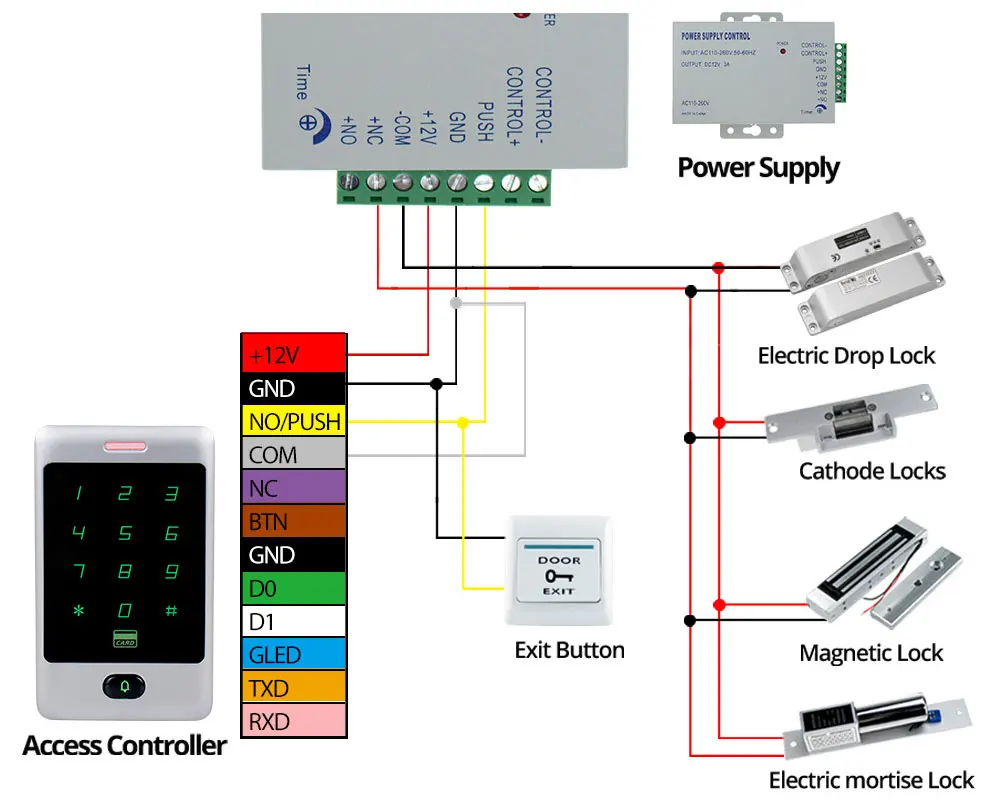

 Wiring Diagram:

Wiring diagram 1


Wiring diagram

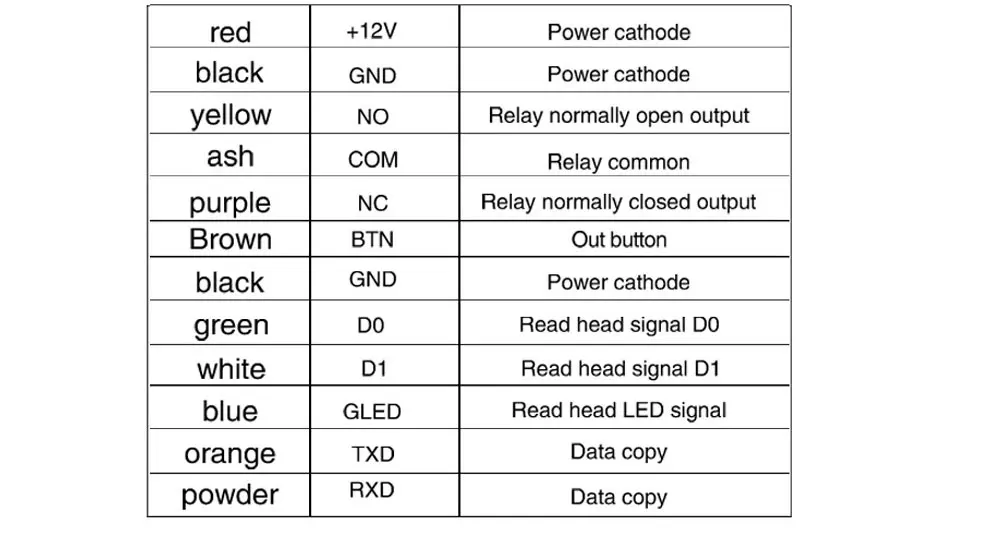

 Connection description

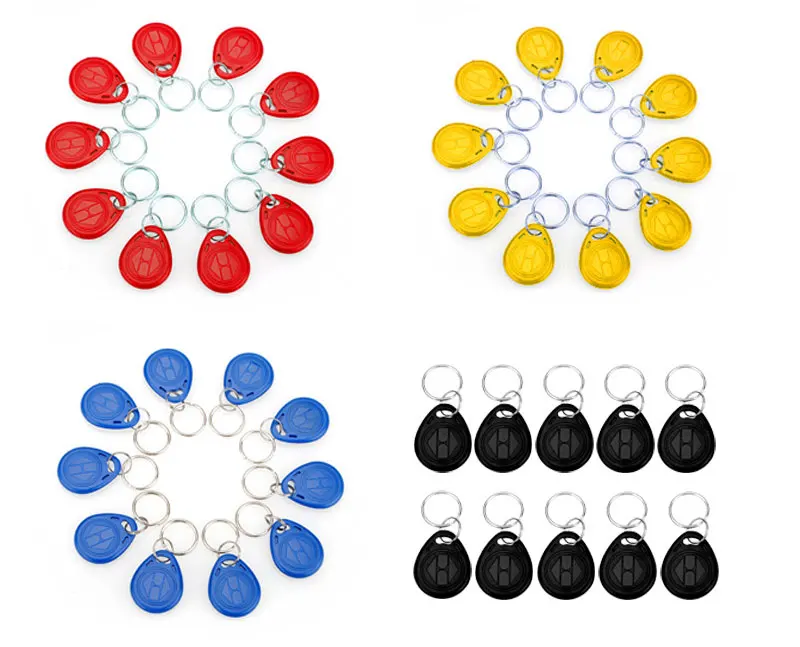

2. Specifications of Keyfobs:

  1. Model: ABS002
  2. Material: ABS plastic
  3. Waterproof
  4. Weight: 0.005kg/pcs (packaged 10 pieces)
  5. ​Chipset: TK4100
  6. Frequency: 125KHz
  7. Protocol: ISO14443A
  8. Color: bule, black, yellow, red, green
