Oписание продукта

Title: Increase 30% Car Response Speed Performance- Electronic Throttle Controller for (Peugeot new 307/big exhaust 307/Imported 206/C-Quatre)5 pins, Sports mode strong booster

Please leave message about your car model and manufacturered year when order! It is very important! Thanks!
This item is drive electronic accelerator, only suitable for all electronic eginition cars.

1. Important step - Car pedal port picture comfirmation.

Considering different countries sometimes have different car pedal models, if you can take a clear pedal port photo of your car like following demo, please leave me a message of your car pedal picture so that we can send the 100% correct mode to match. Tks!


Demo:

Your car\'s pedal port photo:

car pedal port picture demo 1



We send the right car pedal port to match:

car pedal port picture demo 2



2. Sports mode Car Strong Booster features and product pictures.

Product Main Features

1, Shorten the response speed of the electronic throttle

2, Improve the electronic throttle\'s sensitivity

3, Plug and play without external power supply

4,Performance improvement of 30%

5,without adjustment ,going into sport mode intelligently

    No need to change original car circuit, design the protection circuit of preventing the anti-plug of accelerator, which    can effectively protect accelerator and car circuit.

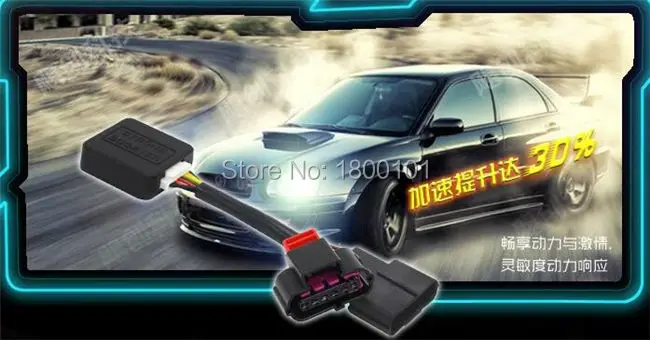

Product pictures

5d 02

7D_r1_c15d 5d 91005P6 1

5D_r3_c17D_r22_c17D_r24_c1

3. Working principle

1. Electronic Throttle and Fly-by-wire Throttle
Along with rapid development of auto industry, auto manufacturers in America,

Germany, Japan and other countries successively adopted electronic throttle control

system early in 1990s. Electronic throttle control system mainly consists of throttle

pedal, pedal displacement sensor, ECU (electronic control unit), data bus wire, servo

motor and choker executing mechanism. Electronic throttle is generally adopted in

fairly new models. Electronic throttle is named in comparison with fly-by-wire throttle

which features direct connection between throttle pedal and choker with thin steel

wire. The treading depth of throttle pedal directly corresponds to the opening width

of choker. Electronic throttle is free of wire. Treading depth of throttle will be converted

into resistance value after a potentiometer (with variable resistance) is mounted in

pedal. Electronic system of automobile indirectly determines the depth of pedal through

sampling of resistance value. Finally, ECU will activate stepping motor to control the

opening width of choker. It can be easily found through principle comparison that fly-

by-wire throttle features simple system and direct control, with the proportion of the

opening width of throttle and choker being 1:1. Characteristics of electronic throttle

are as follows: throttle pedal only indicates driver’s operating intention, while the

final right to control choker belongs to ECU.



2. Characteristics of Electronic Throttle Control System and ECU(ECU)
In models with electronic throttle control system, ECU will analyze the treading depth

of throttle in combination with auto conditions when controlling electronic choker, and

then calculate appropriate opening width of choker at the current time. When diver

speeds up suddenly at the time of startup (tread the pedal to the utmost), ECU will

perform analysis according to the current auto speed, opening width of choker and

other factors, appropriately restrict the opening width of choker from the perspective

of fuel saving and reasonable exhaust emission, and control fuel spray system to

restrict maximum spray of fuel injection nozzle at the same time. In this way, driver

will feel that automobile begins to start after throttle is treaded for a while, which is

the so-called throttle lagging. Therefore, throttle lagging is actually the result of ECU

operation through restricting instant output of engine, which can make automobile

more environmental-friendly and energy-saving.



3. Operating Principle of  strong booster
(1) Accelerating choker opening and improving static response
“Acceleration” of strong booster is realized mainly through improving the responding

sensitivity of choker. When ECU finds that driver has the intention for acceleration, it

will activate rapid opening of choker via circuit signals to improve the responding

sensitivity of throttle.
(2) Speeding up throttle signals and improving dynamic response
When accelerator treads on throttle pedal, strong booster will calculate the alteration

rate of throttle signals according to treading depth and time. Alteration rate is in

proportion to accelerating requirements. strong booster will enhance such alteration

rate and finally realize maximum dynamic response of auto acceleration.
(3) Providing false driving style for ECU’s adjustment of engine parameters
ECU of modern engine generally has the capacity of self-adapting driving style. If

driver often treads on throttle quickly to a considerable depth (also known as pulling

speed), ECU will gradually consider that the driver’s style tends to be “violent”. In this

way, engine will slowly adjust choker and fuel spray system, etc. to obtain optimal

adjusting parameters of engine under this style. After strong booster is used for a

long time, even if the driver drives the car with previous “mile” driving style, engine

will still acquire experience of “violent” driving, which is equivalent to the adjustment

of ECU parameters. At the long last, engine will automatically amend its parameters

to adapt to such driving style.

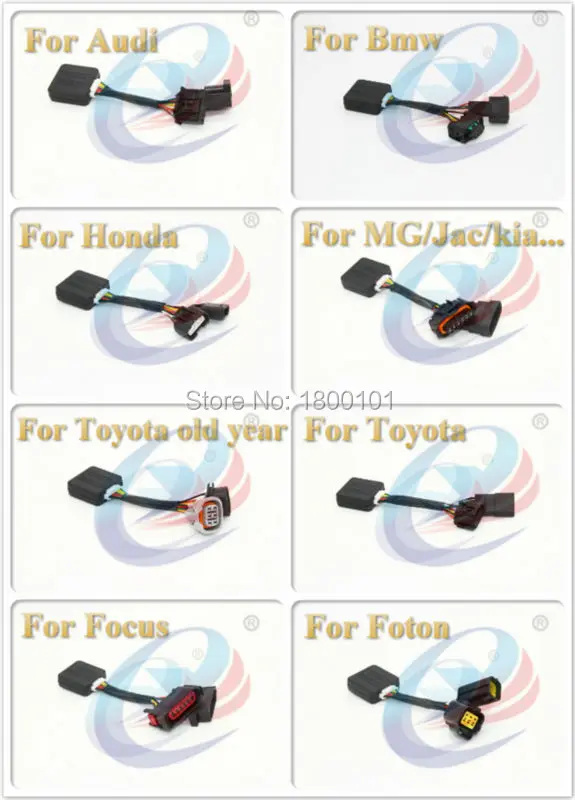

4. Match car model sheet.

Part-specific models (There are nearly 200 models dedicated interface)

W1



5. Installation

Installation steps:

1) Find the signal connector of car gas foot padel;
2) Unplug this signal connector;
3) Insert one pair of Strong booster connector to male & female signal connector separately, Finished.



7D_r19_c1

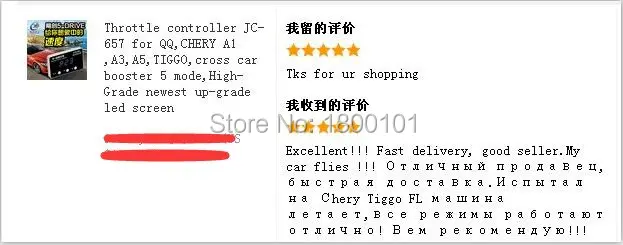

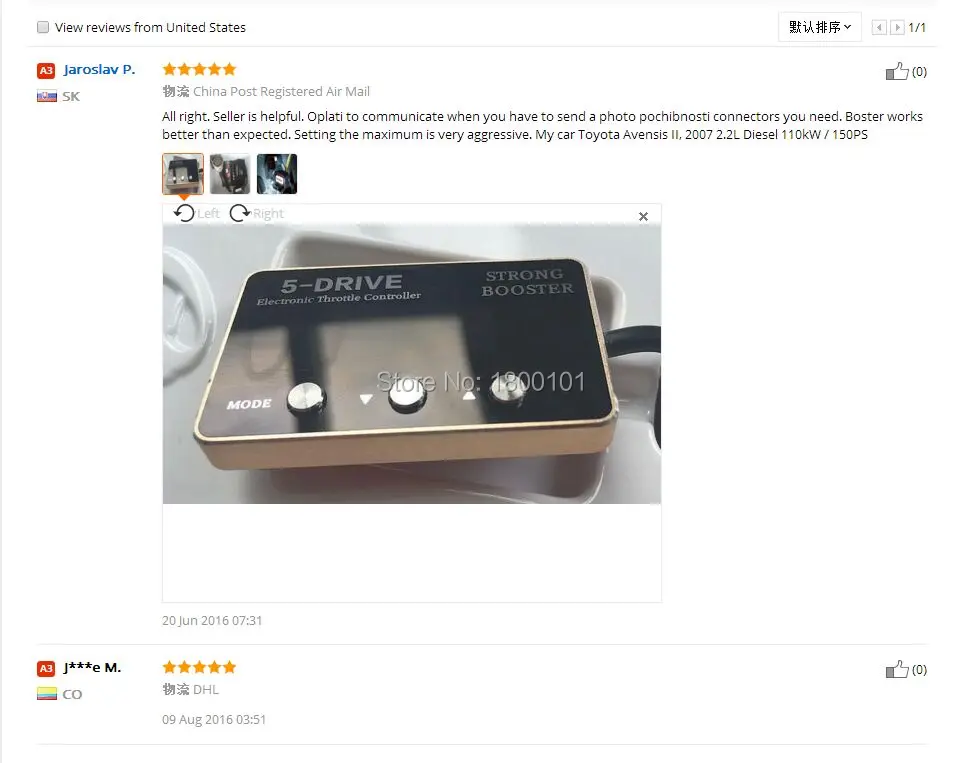

6. Latest customer feedbacks for reference.
