L Kingspec 7 + 17 pin CFAST Memory Cards SATA 2 SSD 4GB 8GB 16GB 32GB 64GB 128GB 2 Channel MLC Industrial device,router ,slrs

L Kingspec 7 + 17 pin CFAST Memory Cards SATA 2 SSD 4GB 8GB 16GB 32GB 64GB 128GB 2 Channel MLC Industrial device,router ,slrs
  • Продавецidol-umeda.info
  • Список ценUS $21.85piece
  • Продажная ценаUS $21.85piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,8 (925)

Oписание продукта



specification

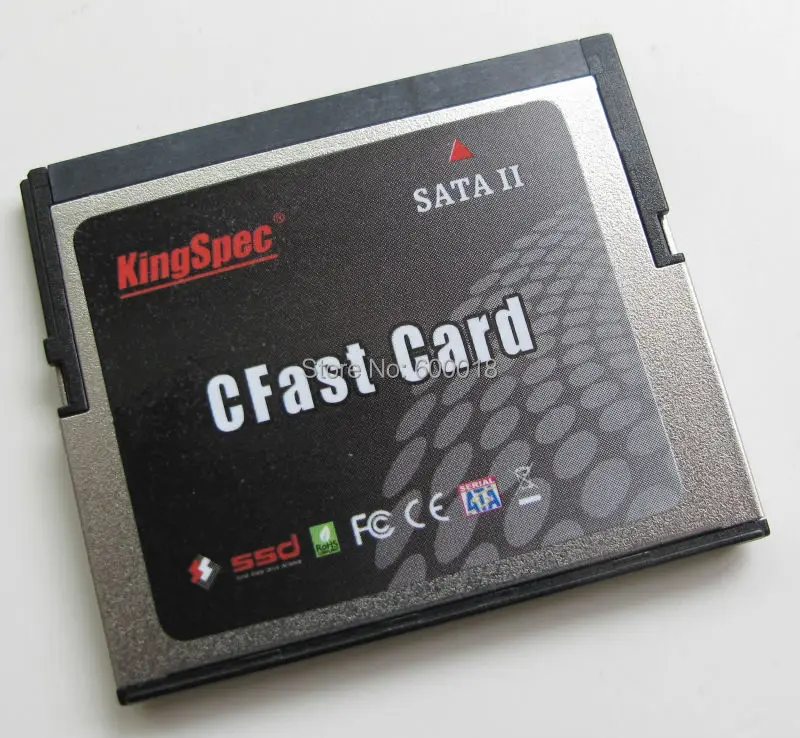

Kingspec  CFAST SATA II CF Flash Memory Cards

4GB 1-CHANNEL 8GB 16GB 32GB 64GB 128GB 2-Channel MLC Industrial device,router



CFast card use modified SATA interface, limiting speed up to 375 MB/s. The interface for 7 + 17 pin, among them 7 pin for signal wire, 17 other pin for power supply and control circuit. Compatible SATA versions 2.6 standard, backwards compatible SATA I / II CFast memory card, can easily switch to the standard SATA interface, can be called the world\'s smallest SATA solid hard disk. This card is mainly used for SLRS and control main board and other imaging equipment, etc.

IMG_4292_IMG_4288_IMG_4295IMG_4301_

Model KCF-SA.7-XXXX
General Form factor 36.40×42.80×3.30mm
Interface SATA II
Performance Capacity 8GB | 16GB | 32GB | 64GB
Sustained Read 71MB/S | 128MB/S | 117MB/S | 145MB/S | 153MB/S
Sustained Write 15MB/S | 28MB/S | 33MB/S | 60MB/S | 102MB/S
Random IOPS
4KB Random Read IOPS 4.8K
4KB Random Write IOPS 0.5K
Average Access time 0.2ms
Storage Media NAND Flash MLC/SLC
Power Consumption input Voltage 3.3V+/-5%
Idle 0.5W
Active 2.0W
Reliability& Endurance Write endurance 8years 100GBytes write and erase per day at 32GB
Read endurance unlimited
Wear-Leveling Algorithm 8years 100GBytes write and erase per day at 32GB
Data Retention 10years at 25
MTBF 1,500,000hours
ECC 6 or 24 bits ECC per 1024 Byte
Bad Block Management Auto Bad Block Management in system
Environment Operating Temperature 0~70
Non-operating Temperature -40~85
Shock
Vibration
Ambient Humidity 5-95%
Warranty 3 years
Available unit Available Already production
Testing Platform
Testing Software CrystalDiskMark 3.0 HD Tune PRO 3.50 ATTO Disk Benchmark IOmeter 2008
Physical Dimensions & Weight Height(mm) 3.30mm
Width(mm) 42.80mm
Length(mm) 36.40mm
Weight(g)
