efix 16MP 3.5 90X HDMI USB Soldering Microscope Camera C Mount Lens Trinocular Stereo Zoom 10 LCD Workbench Stand Repair Tools

efix 16MP 3.5 90X HDMI USB Soldering Microscope Camera C Mount Lens Trinocular Stereo Zoom 10 LCD Workbench Stand Repair Tools
  • Продавецidol-umeda.info
  • Список ценUS $454.30piece
  • Продажная ценаUS $454.30piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (303)

Oписание продукта

efix 16MP 3.5-90X 10 inch LCD Display Soldering Trinocular Stereo HDMI USB Microscope with Big Workbench is designed by phone repair engineer. It is simple, but the function is very strong. It\'s equiped with 16MP Industrial Video & Photo Camera, big Workbench with Tools & Parts & Paterial collector, spcial design LED and dimmer. With this microscope sets, you will find your work is more convenient and easy.

10 16MP HDMI-1



Features:

  • Plug and see, no need special knowledge, and you can check the small parts by LCD or eyepiece;
  • 3.5X-90X(with auxiliar LENS) Continuous Zoom Microscope;
  • Equipped with big workbench with silicone pad;
  • Equipped with tools & material & parts collector, can make your working table clean and make your work conviently and easily;
  • Special pillar clamps, LED and dimmer design, can make your operation space bigger;
  • Low thickness working plate, you can enjoy relaxed operation;
  • Simple design, no need connect many wire like others, just connect power and Video cable, then you can use the microscope.



  • Specifications:
  • Captures Microscope Images and Streams Live Video on big size TV

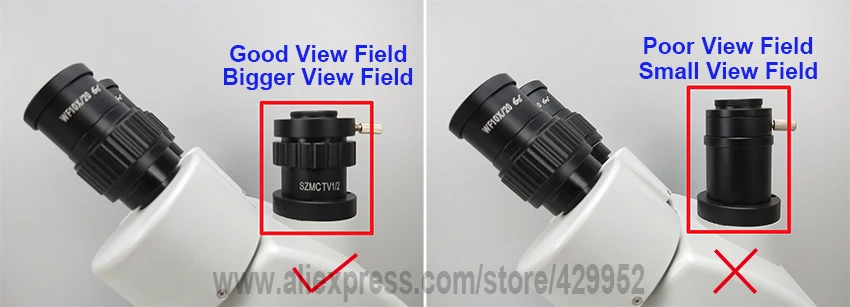

  • Built-in Reduction Lens Provides the Same Field of View on Screen as Through Eyepiece
  • Top quality optical glass elements
  • Zoom range 3.5x~90x (with auxiliar LENS)
  • Big working distance allows enough operation space
  • 45°inclined 360°rotatable trinocular head
  • Sharp erect stereo images over a wide field view
  • Both ocular tubes have diopter adjustment
  • Adjustable inter-pupillary distance to fit anyone\\\'s eyes
  • Sturdy metal framewor
  • Head: 45°Inclined 360°rotatable trinocular
  • Eyepieces: wide field WF10X/20MM
  • Zoom ratio: 1:6.4
  • Objective zoom: 0.7x~4.5x
  • Total magnification: 3.5x~90x (with auxiliar lens)
  • Both ocular tubes have diopter adjustment ±5dp
  • Interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)
  • Standard Working distance:100mm, can reach 30-163mm with auxiliar lens
  • Focus adjustment stroke: 2-3/8" (50mm).

Package Include:

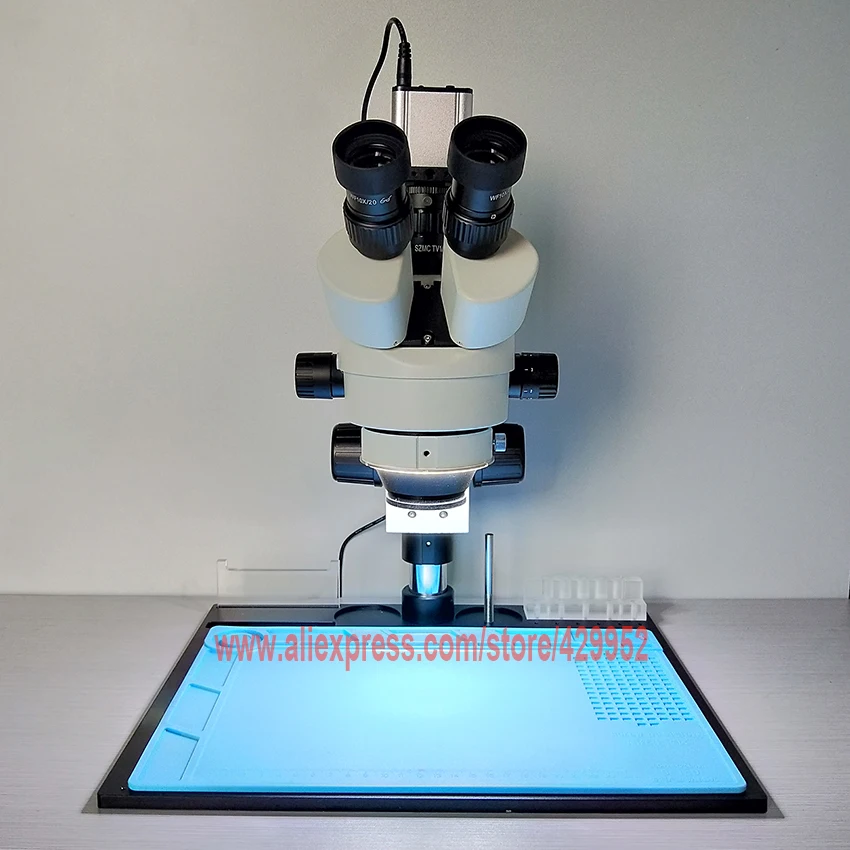

1x Trinocular stereo microscope with Microscope Stand (include LED Light);

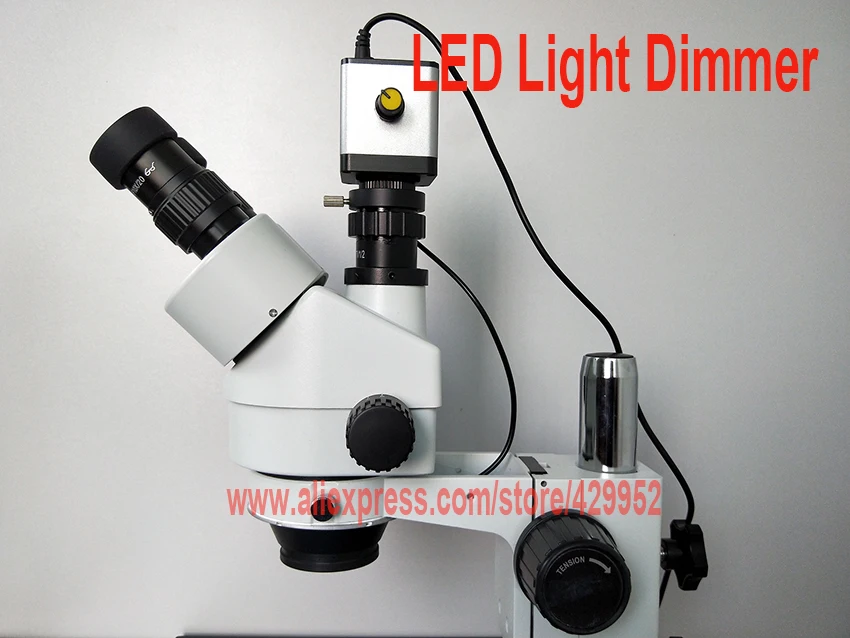

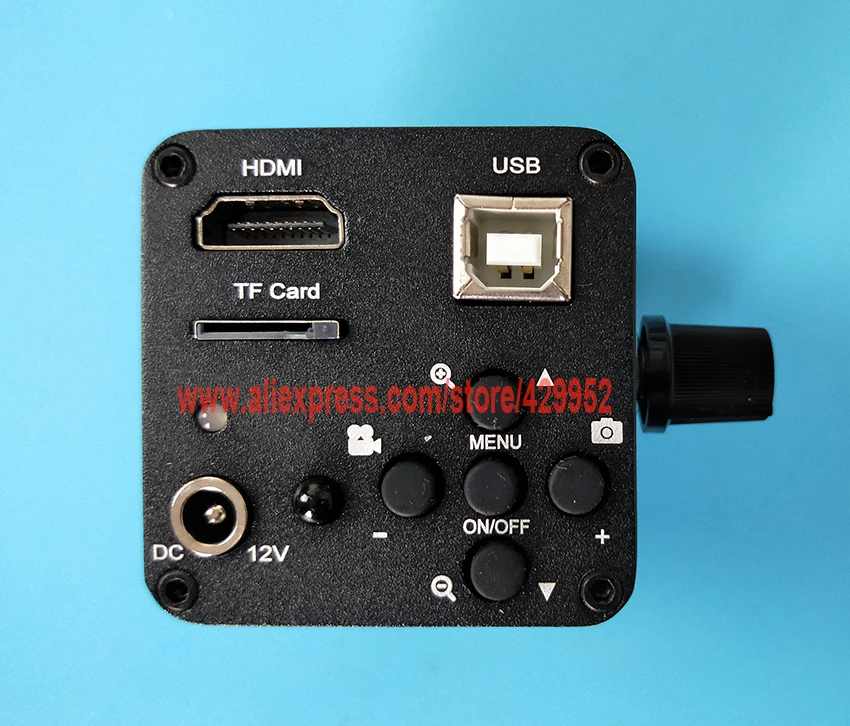

1x 16MP CMOS Microscope Camera with HDMI, USB Cable, and LED Dimmer;

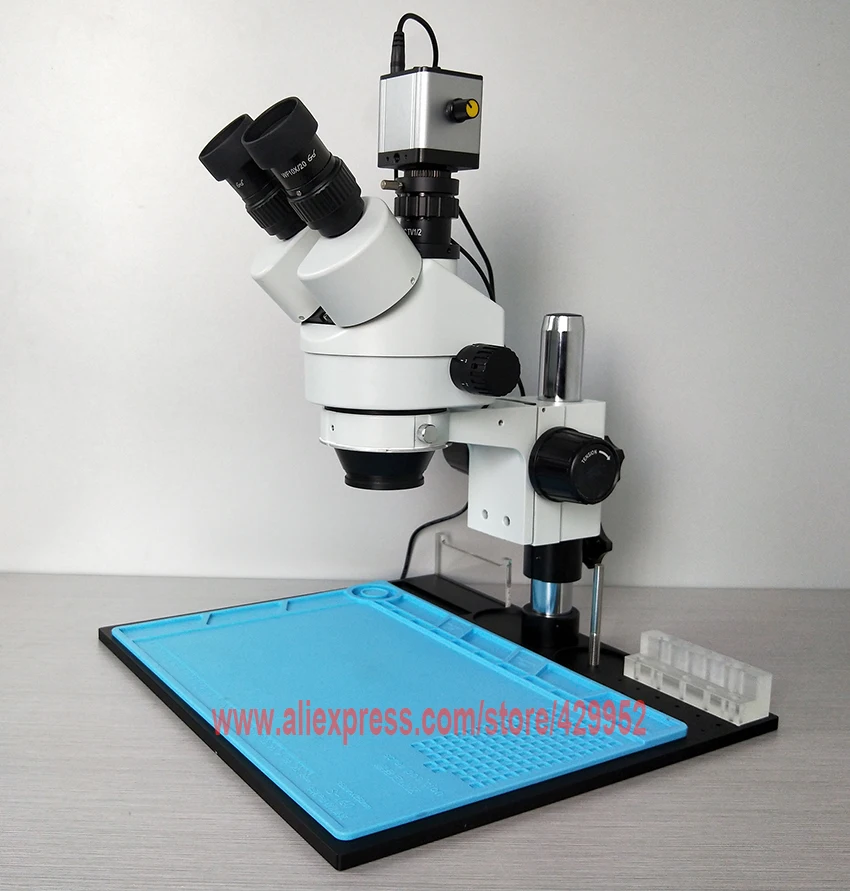

     1x Big Workbench with Tools & Material Collector;
     1x Blue Silicone Mat;
     1x Dust Cover;
     1x Microscope Power;
     1 pair of WF10X/20mm eyepiece with rubber eye guards.

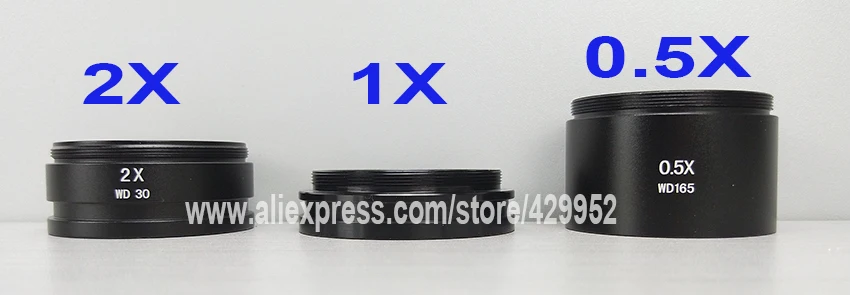

     1x 0.5x Auxiliar LENS
     1x 2.0x Auxiliar LENS
     1x 1.0x Auxiliar LENS
     1x 10" LCD Display




Note:

The shipping package not include TF card, screwdriver, tweezer, soldering material, logic board, and others which showed on picture and video.

10 16MP HDMI-210 16MP HDMI-3
