TCP/IP 4 doors access control panel access control board Network Intelligent Access Panel +ZK original PSM030B Power Supply Unit

C3-400
packing list

C3-400-15-01



1 PC Four Door Access Control Panel

1 PC 12V3A Power Supply

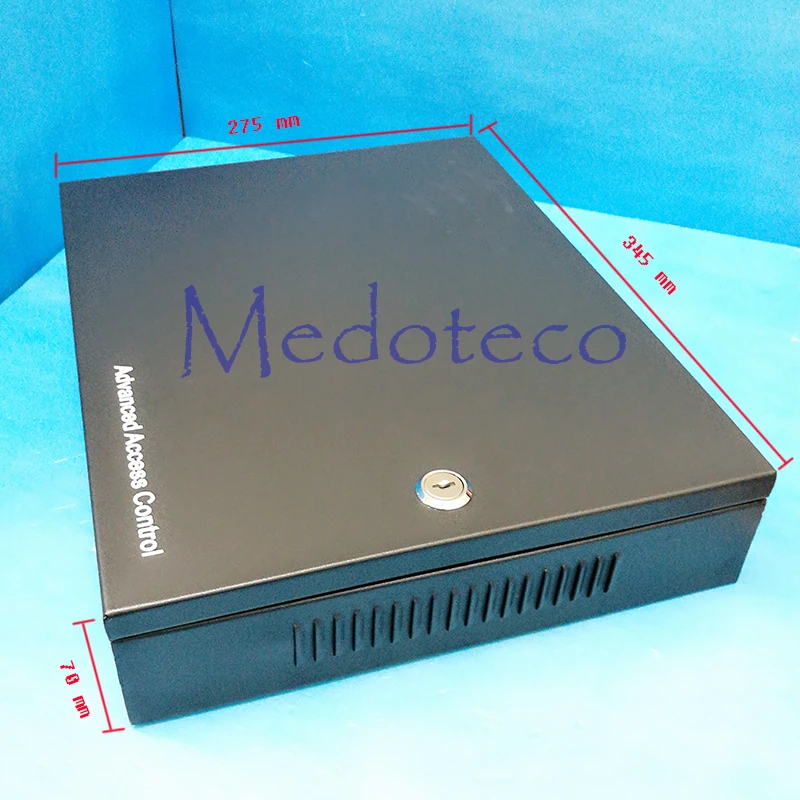

1 PC Metal Box

1 PC CDIntroduction 01

Access Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system—all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3/400’s versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3/400 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

Feature

.Multiple hardware protection measure
There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
.Integration with Other Security Systems
It can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
.Supports different Wiegand reader
The controller support different wiegand format, and can Connect to different reader, including ID card reader, MF card reader etc.
.Input/Output Ports to Control Doors
connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
.Variety of Communication Function
Using either serial or TCP/IP communication, it provides reliable network system

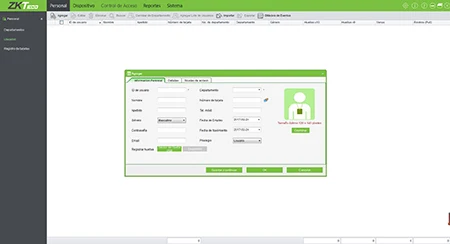

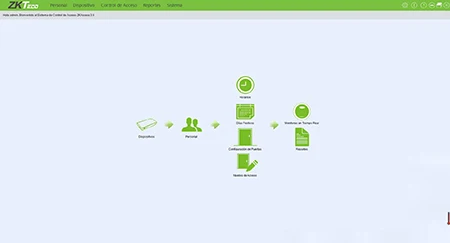

.B/S structure software
It is easy to manage the system by browser from client PC.
.Normal open after first punch card can be setup
.Real-time Monitoring of Door status
Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
.Simple Access Control System Configuration
.Interlock function
Link different doors with special logic that one door is Open, others should be closed.
.Multi-card operation
This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
.Anti-Passback
.Duress Mode
.SDK available
The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
       Specification

Model

C3/400

CPU

32bit MIPS CPU

RAM

32M bits

Flash Memory

256M bits

User

30,000

Event Buffer

100,000

Power / Current

DC 9.6V-14.4V, Rated Max.1A

Reader Port

4ea (26bit Wiegand, 8bit Burst for PIN)

Communication

RS485, TCP/IP

Baud Rate

38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)

Input Port

12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door Sensor#2, Door Sensor#3, Door Sensor#4, Aux#1, Aux#2, Aux#3, Aux#4)

Output Port



4ea (4 FORM-C Relay Output, SPDT [email protected]/[email protected])

4ea (4 Aux FORM-C Relay Output, SPDT [email protected])

LED Indicator

Yes, LED indication for communication, power, status and punch card

Operating Temperature

0  to +55

Operating Humidity

10% to 80% relative humidity non-condensing

Dimension (L*W)mm

218(W)*106(H)(single board )

Certification

CE, FCC, RoHS

 diagram

C3-400-03C3-400-04C3-400-05C3-400-06

diagram



dia-accesscontrol-panel-02





es01Es03

others

Feature:

Spare parts for C3-100/200/400 Package B

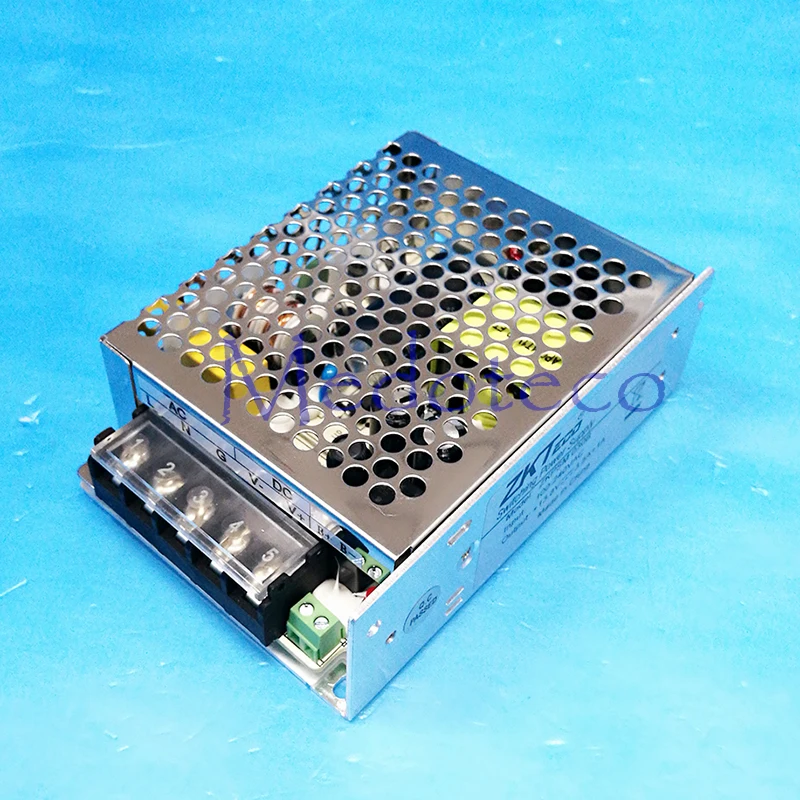

Power supply for Controller with uninterrupted battery function

Can work with back up Battery

Output: 13.7V/3.5A+1A

Input: 110-240V AC, 50/60Hz





030B-03-01C3-400-12-02
