Premium Version Mini 3G SDI to HDMI Video Audio Converter Adapter + DC 5V 1A Adapter UK Plug/US Plug Power Supply

Premium Version Mini 3G SDI to HDMI Video Audio Converter Adapter + DC 5V 1A Adapter UK Plug/US Plug Power Supply
  • Продавецidol-umeda.info
  • Список ценUS $22.97piece
  • Продажная ценаUS $22.97piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,9 (277)

Oписание продукта

Mini 3g HDMI To SDI Converter Full HD 1080P HDMI to SDI Adapter Video Converter with Power Adapter for Driving HDMI Monitors (13)

Mini 3g HDMI To SDI Converter Full HD 1080P HDMI to SDI Adapter Video Converter with Power Adapter for Driving HDMI Monitors



Overview:

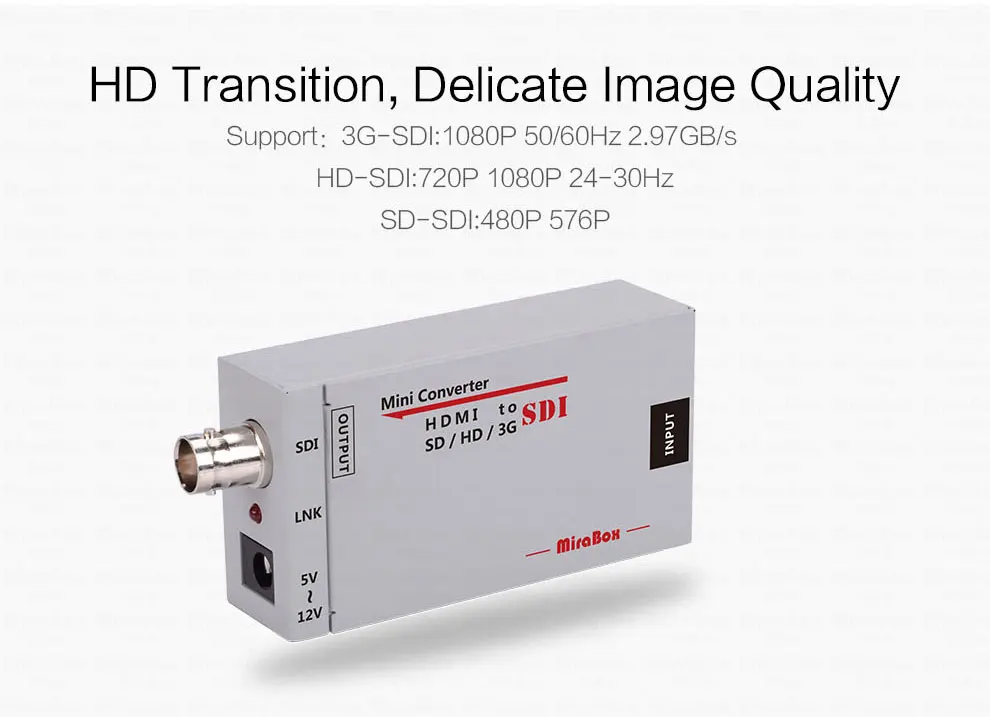

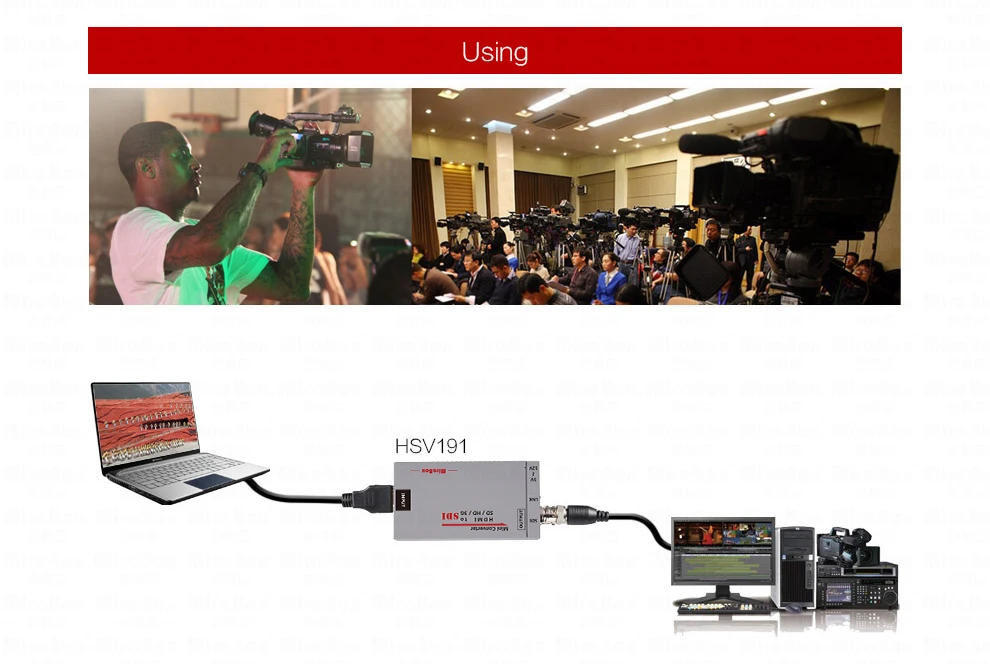

The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit / s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.



Highlights:



1. Shows HDMI source on SDI display.
2. SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
3. Supports HDMI input timings: [email protected] 59.94, 576i, [email protected] 50/59.94/60, [email protected] 50/59.94/60, [email protected] 23.98/24/25/29.97/30/50/59.94/60.
4. Converts HDMI signal to SDI:
- 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
- 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
- 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

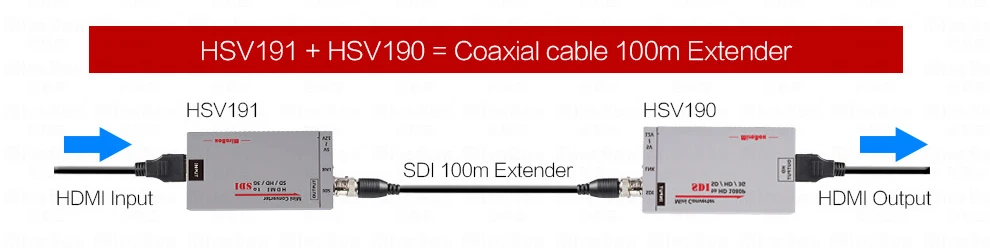

5. Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI).

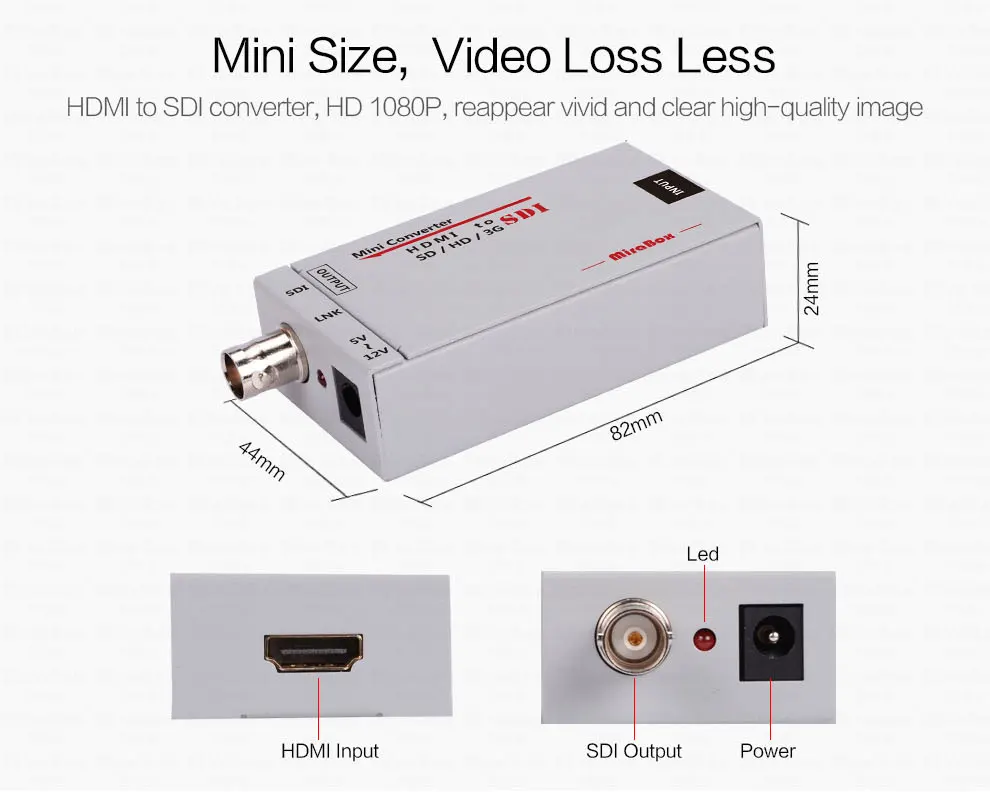

Operation controls and Functions:

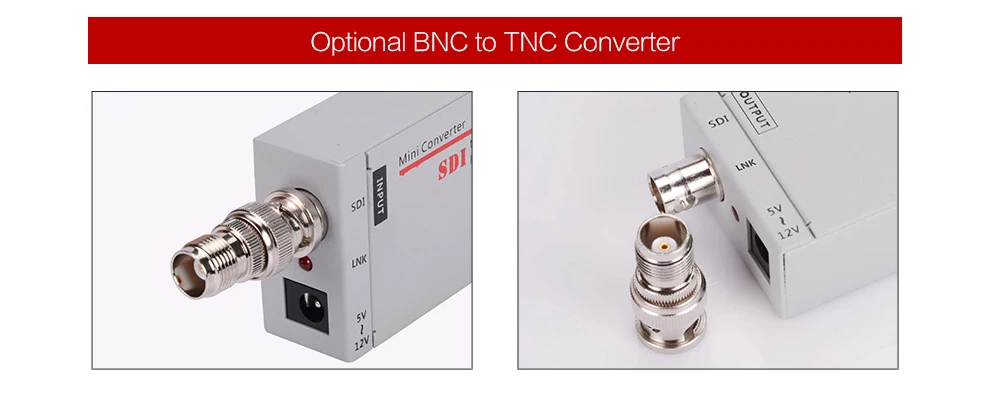

1. SDI-OUT: This slot is where you connect the SDI display with coaxial cable.
2. POWER LED: This red LED illuminate when the device is connected with power supply.
3. DC IN: Plug the 5V-12V DC power supply into the unit.
4. HDMI IN: This slot is where you connect the HDMI source with HDMI cable.

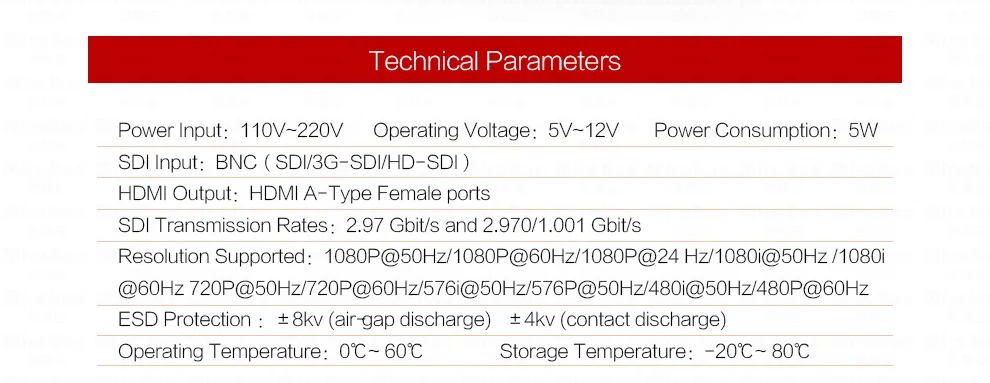

Specification

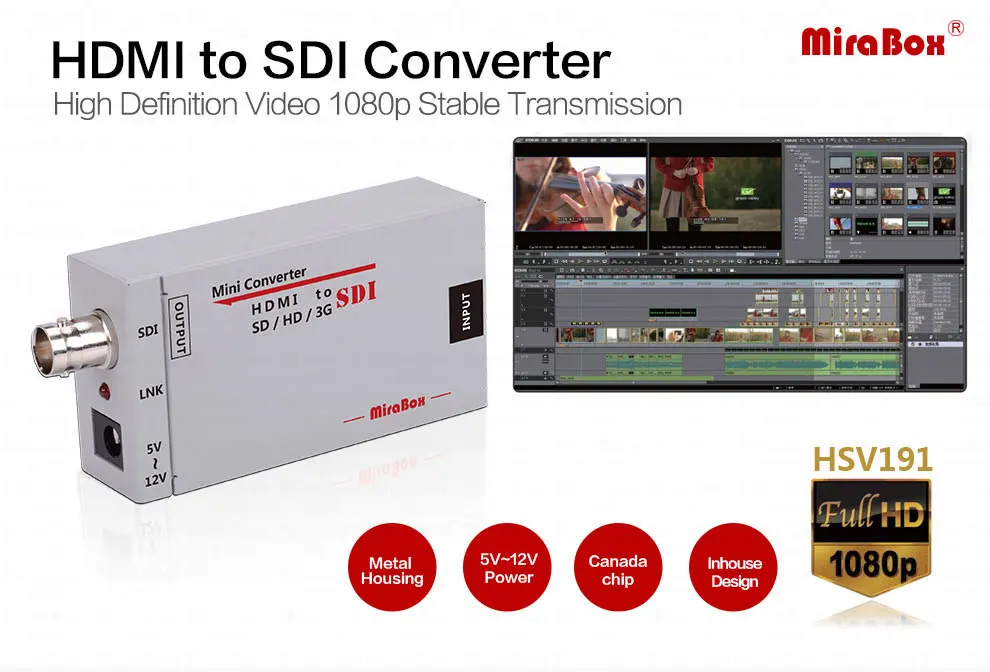

Item: HSV191 Mini 3G HDMI to SDI converter
Power Input: DC 5V
Power Consumption: 5W
SDI ouput: BNC(SDI/3G-SDI/HD-SDI)
HDMI intput: HDMI A-Type Female ports
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
Resolution Supported: [email protected] / [email protected] / [email protected] 3D
[email protected] / [email protected] [email protected] / [email protected] / [email protected] 3D / [email protected] 3D
[email protected] / [email protected] / [email protected] / [email protected]
ESD Protection: ±8kV (air-gap discharge) ±4kV (contact discharge)
Operating Temperature: 0°C ~ 60°C
Humidity: 20% ~ 90% RH(Non-condensing)


Package contents:

1)  Mini 3G HDMI to SDI converter            x 1
2) Manunal                                                 X1
3) 5V Power adapter                                  X1
