For Great Wall Wingle 5 H3 H5 SUV GW 2.5 TCI 2.5L 80 KW 109 HP NEW billet turbo cartridge CHRA 4913506910 turbolader core part

For Great Wall Wingle 5 H3 H5 SUV GW 2.5 TCI 2.5L 80 KW 109 HP NEW billet turbo cartridge CHRA 4913506910 turbolader core part
  • Продавецidol-umeda.info
  • Список ценUS $69.48piece
  • Продажная ценаUS $69.48piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,3 (123)

Oписание продукта

AAA Turbocharger Parts

KP35 Turbo rotor assembly

Shaft & Wheel P/N:5439-120-501

Compressor Wheel P/N:5443-123-2012

P/N:5439-970-0006,5439-970-0007,5439-970-0008,5439-970-0010,5439-970-0011,5439-970-0013,
5439-970-0017,5439-970-0018,5439-970-0019,5439-970-0020,5439-970-0021,5439-970-0022,5439-970-0024,5439-970-0026

OEM:038253016L,038253016N,038253010M,038253016J,038253016M,038253056B,
038253010P,038253016R,038253056G,038253016P,038253010A,038253010S,038253014A,
038253014D,038253010B,038253014B,038253010C,038253014H,038253014F,038253010D,
038253014G,038253056E,038253014E,038253019S


Turbine wheel size:

Exducer "ØA" =37.5mm

Tip Height "B"=6.5mm

Inducer "ØC"=38.5mm

Journal "ØD"=6mm

Stem "ØE"=4.1mm

blades=9

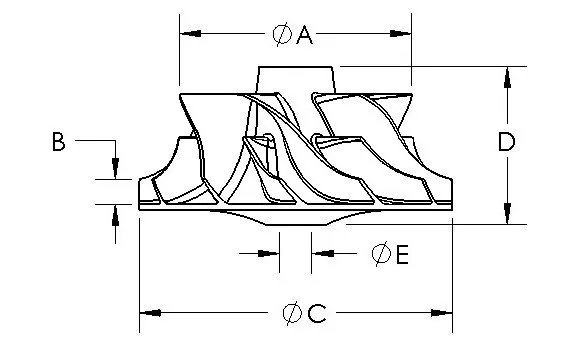

Compressor wheel size:

Inducer "ØA"=33.6mm

Tip Height "B"=4mm

Exducer "ØC"=46mm

Hub Length "D"=21.6mm

Bore "ØE"=4.1mm

No. of blades=6/6




-------------
