Oписание продукта

1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI 3G HD SDI Signal (13)

1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI   Video Converter Mini Box Support SDI/3G/HD SDI Signal

sdi to hdmi converter,sdi to hdmi video converter,3g sdi to hdmi converter, mini converter sdi to hdmi

Introduction:

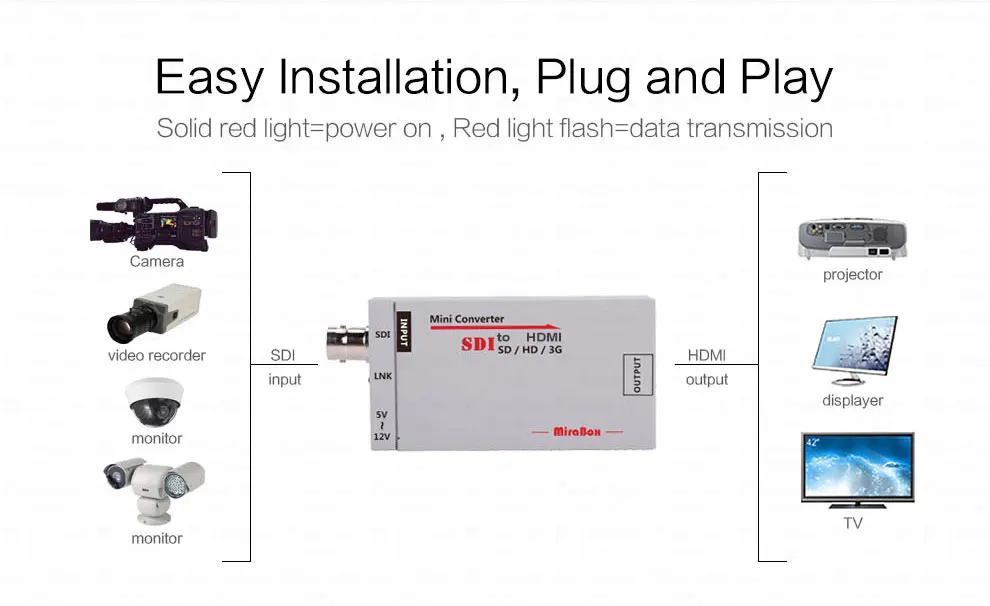

The Mini SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

sdi to hdmi converter,sdi to hdmi video converter,3g sdi to hdmi converter, mini converter sdi to hdmi

Features:

1. Complies with SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit.
2. Adaptive scaler&TrueColor technology ensure video signal quality and display effection.

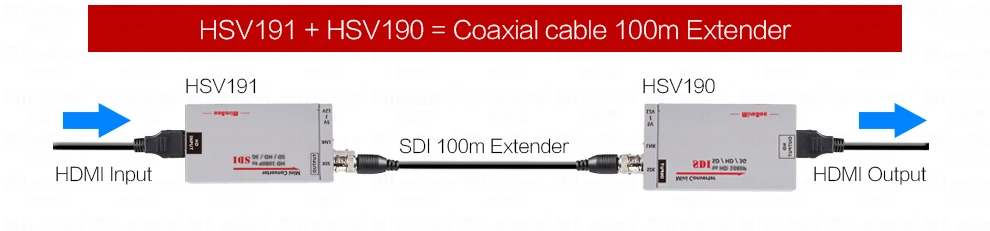

3. Enhanced HD signal processing technology supports maxim 120 meter SDI transmission.
4. Industry standard design, 365*24 hours uninterruptible working.
5. Supports wide range input voltage from 5V - 18V.

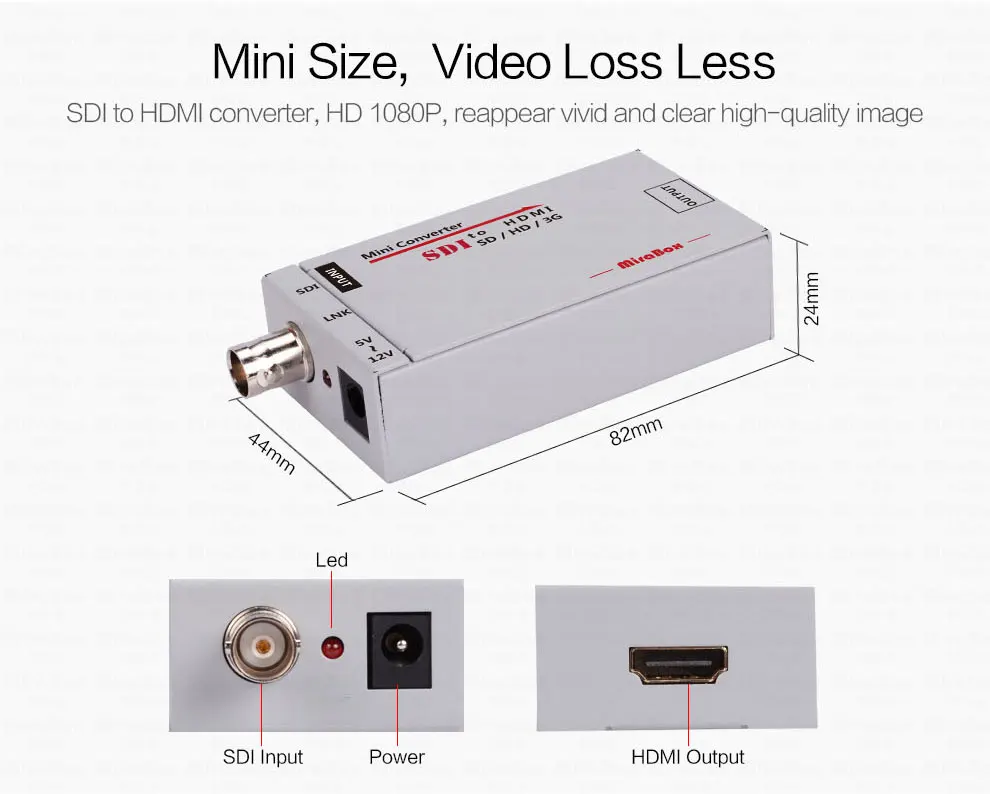

6. Mini size design easy to carry for engineering.

sdi to hdmi converter,sdi to hdmi video converter,3g sdi to hdmi converter, mini converter sdi to hdmi

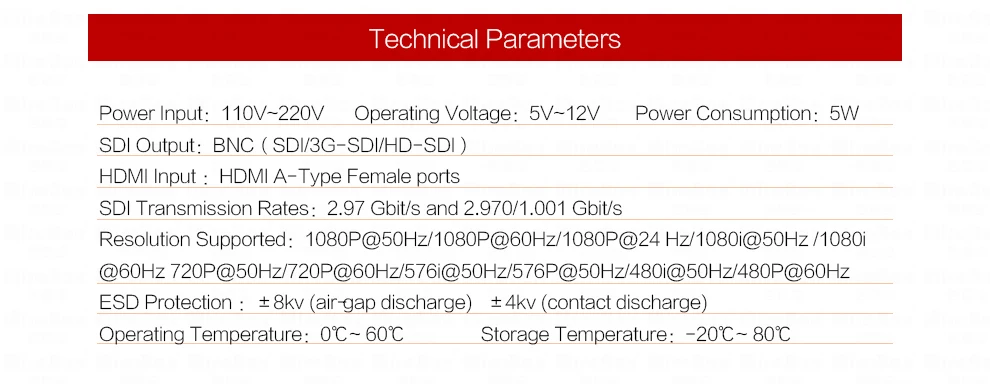

Specification:s

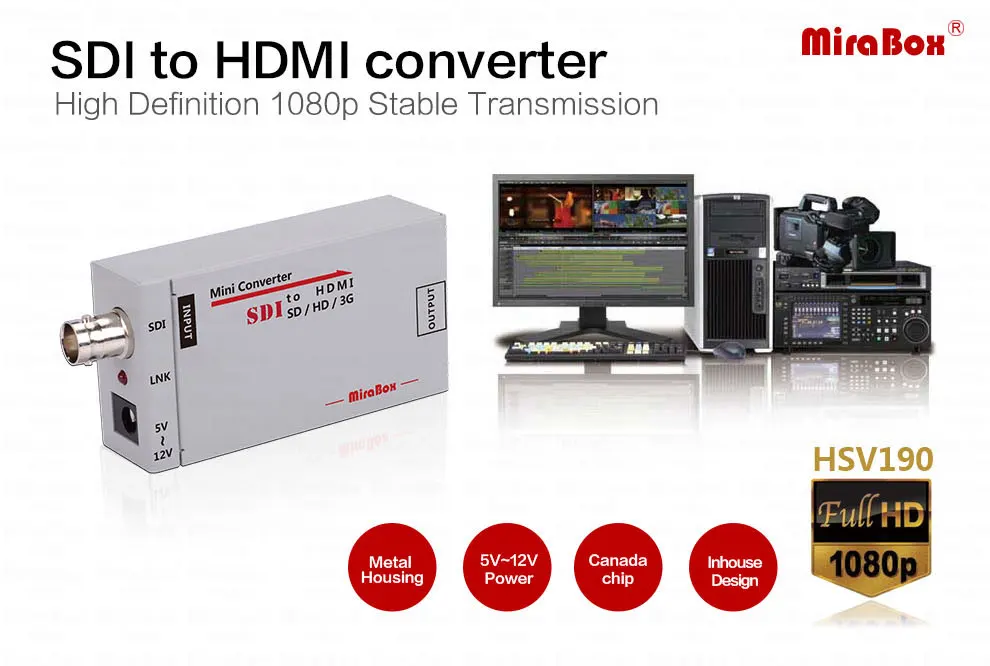

Item:HSV190 Mini 3G SDI to HDMI converter
Power Input: DC 5V-18V
Power Consumption: 5W
SDI Input: BNC(SDI/3G-SDI/HD-SDI)
HDMI Output: HDMI A-Type Female ports
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s

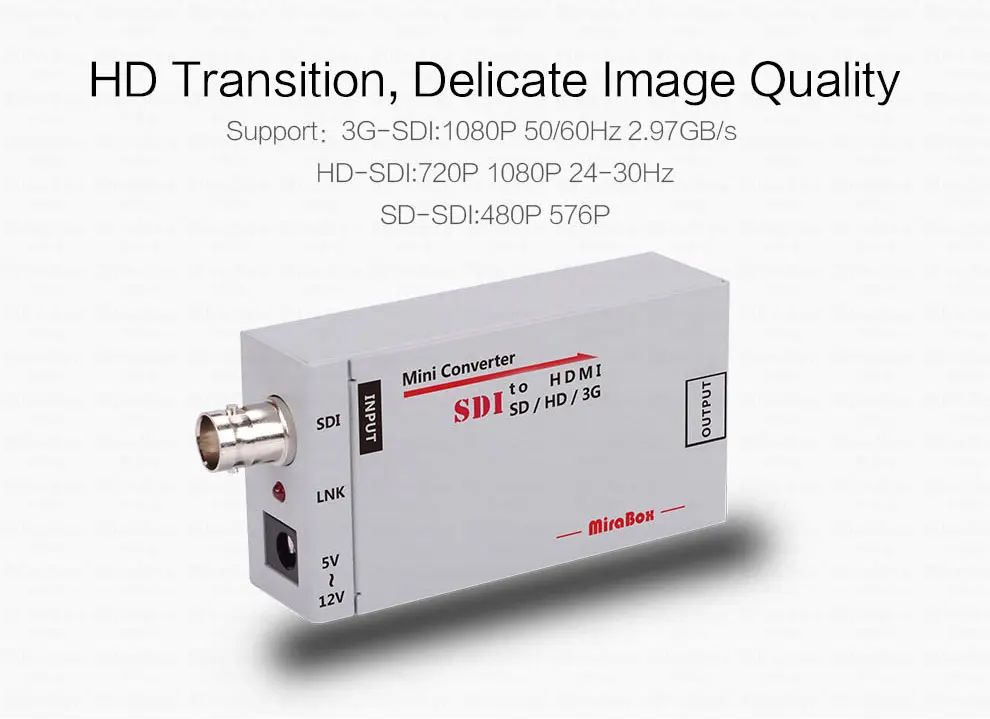

Resolution Supported: [email protected] / [email protected] / [email protected] 3D [email protected] / [email protected] [email protected] / [email protected] / [email protected] 3D / [email protected] 3D [email protected] / [email protected] / [email protected] / [email protected]
ESD Protection: ±8kV (air-gap discharge) ±4kV (contact discharge)
Operating Temperature: 0°C ~ 60°C
Humidity: 20% ~ 90% RH(Non-condensing)

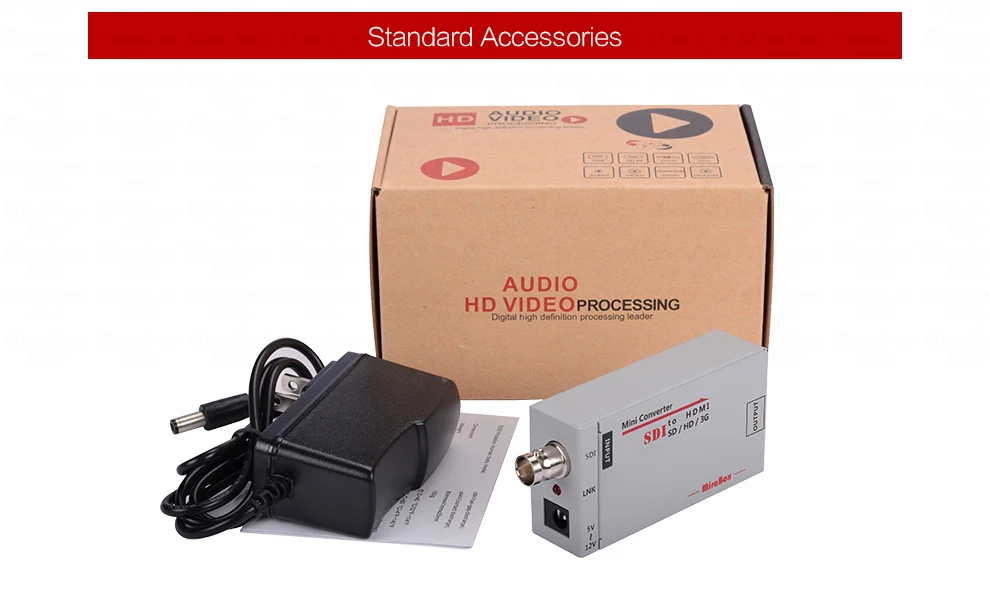

Package contents:



1)   Mini 3G SDI to HDMI converter             x 1
2) User Manunal                                         X1
3) 5V Power adapter                                  X1

sdi to hdmi converter,sdi to hdmi video converter,3g sdi to hdmi converter, mini converter sdi to hdmi

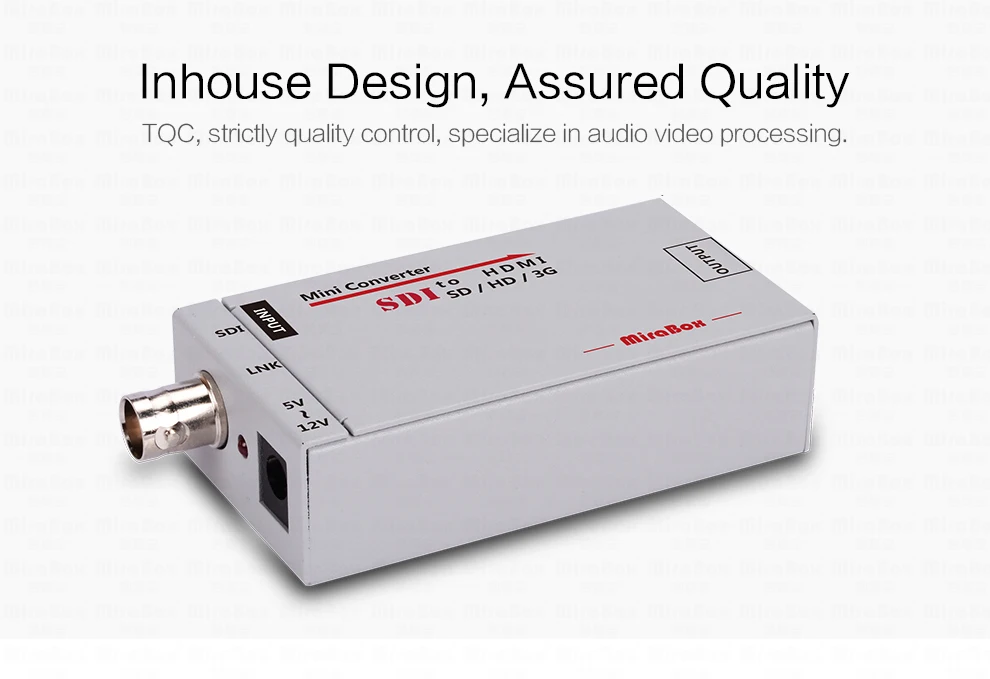

 Product Pictures                                                                                                              1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (1)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (2)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (3)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (4)



1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (5)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (6)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (7)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (8)

1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (9)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (10)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (11)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI3GHD SDI Signal (12)



1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI 3G HD SDI Signal (14)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI 3G HD SDI Signal (15)1080P Mini 3G SDI To HDMI Converter With Audio For HD Camera SDI To HDMI Video Converter Mini Box Support SDI 3G HD SDI Signal (16)

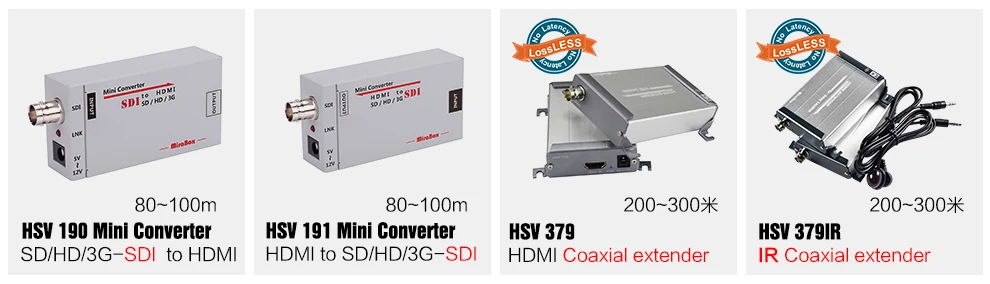

191_190_379(IR)-EN
