GOXAWEE Laser Level 5 Lines 6 Points 360 Degree Rotary Self Levelling Laser Level 3D Outdoor Mode Lever Construction Tools

GOXAWEE Laser Level 5 Lines 6 Points 360 Degree Rotary Self Levelling Laser Level 3D Outdoor Mode Lever Construction Tools
  • Продавецidol-umeda.info
  • Список ценUS $35.51piece
  • Продажная ценаUS $35.51piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (161)

Oписание продукта

Kaitian 3D Laser Level 12 Lines 360 Rotary Tripod for Level Nivel Bracket Receiver  Vertical Horizontal Laser Construction Tools







960X400 MR3D5



950x340_01950x340_02950x340_03





Kaitian Laser Level MR3D5 view 2





SETKT-MR3D5LADKT-MR3D5LAGRKT-MR3D5LAFR
  12 lines MR3D5LAD HMR3D5LAGR HMR3D5LAFR H

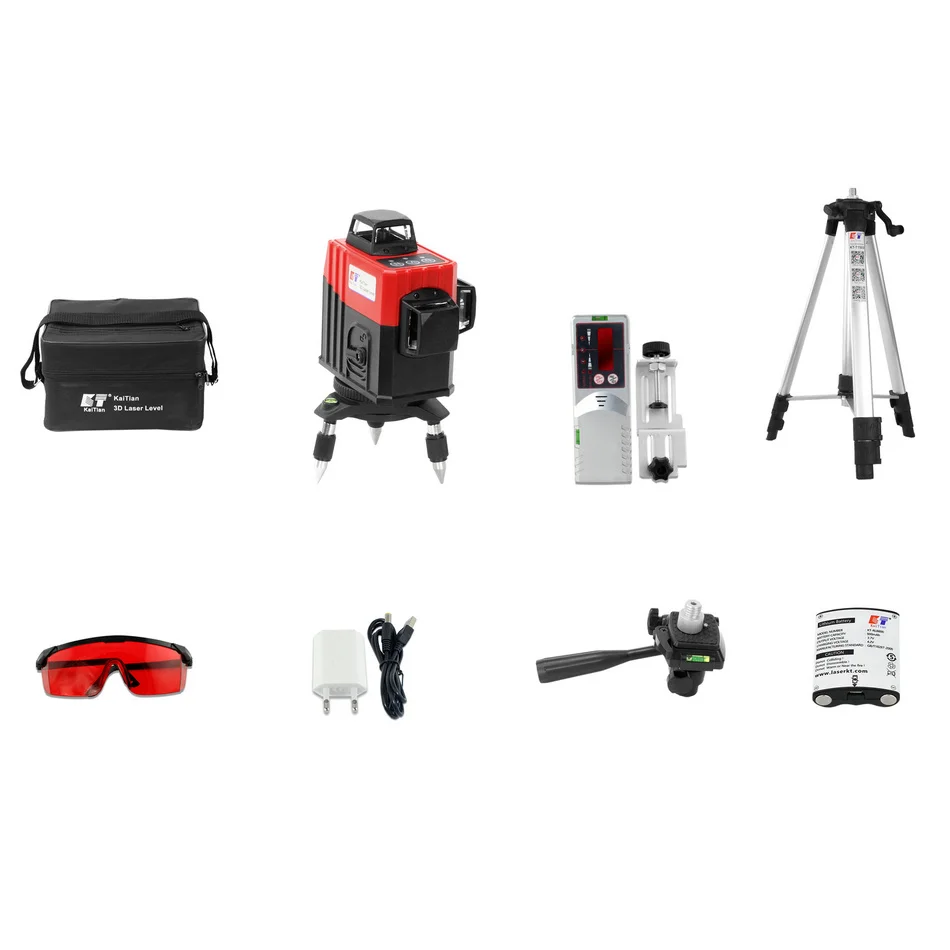

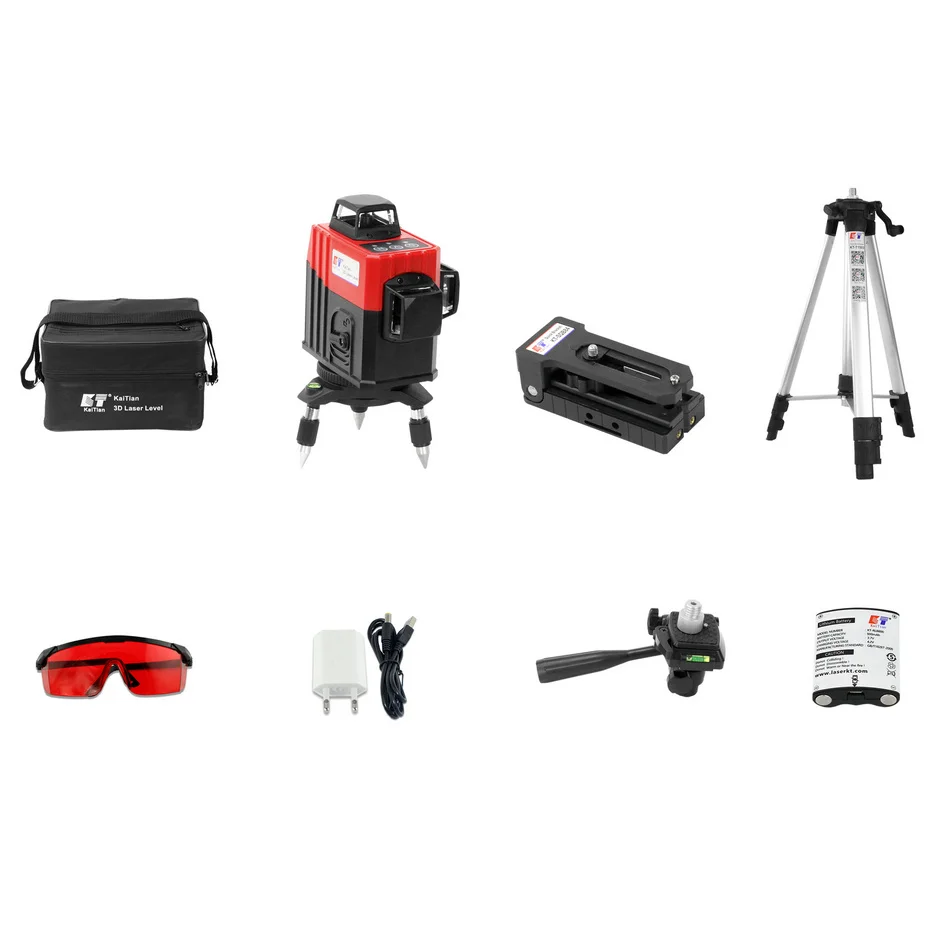

Includes

   laser level  ,  canvas case ,  glasses



   power plug  ,  1.4m tripod  , 360 ° bracket





  laser level  ,  canvas case ,  glasses



   power plug  ,  1.4m tripod  , 360 ° bracket



   battery   ,  magnetic bracket



   laser level  ,  canvas case ,  glasses



   power plug  ,  1.4m tripod  , 360 ° bracket



   battery   ,  receiver

Lines width  3.5mm @ 10m  3.5mm @ 10m    3.5mm @ 10m
Precision

   ±2mm @ 10m

  ±2mm @ 10m    ±2mm @ 10m
Wavelength   650nm   650nm    650nm

Operating

Temperature



 -10℃  to 50 ℃  -10℃  to 50 ℃   -10℃  to 50 ℃




Kaitian 3D Laser Level 12 Lines Tripod for Laser Level 360 Model KT-MR3D5LAD KT-MR3D5LAGR  / KT-MR3D5LAFR

Kaitian Laser Level Self Levelling 12 Lines  Specification
The 3D5 laser level has three laser windows, each window can launch 4 laser lines,totally 12 laser lines
( 8 Vertical Line, 4 Horizontal Line,4 laser lines combine to a plane).

Wavelength:650nm<1mw
Laser class:II
Damping Type: Magnetic
Leveling duration: <=4s
Laser Level Line Width at 10M: 3.5mm
Horizontal,Vertical Precision: +-  2mm @ 10M
Orthotropic accuracy: 90 degree  +-  30"
Leveling Range:  +- 4(Degree)
Working time:
3 Hrs /1pcs 3.7v/800mah battery
Working Temperature:  -10 to +50 (Centigrade)
Storage Temperature:  -20 to +60 (Centigrade)


KaiTian Lasers 3D Nivel Laser  Packing List
Choose different 3D Laser Level Green product models in Color

4 types of power supply
3.7V  800mAh Rechargeable Lithium Battery x 1pcs,
1.5V  AA batteries ,
1.2V  AA batteries ,
AC 100-240v Adapter





tilt function



Kaitian Laser Level MR3D5M OUTDOOR



work with receiver 2



Kaitian Laser Level MR3D5M receiver LE



Kaitian Laser Level MR3D5M receiver LE



Kaitian Laser Level MR3D5M close wall 2



Kaitian Laser Level MR3D5M light 2

Kaitian Laser Level MR3D5A width





Kaitian Laser Level MR3D5A 03





Kaitian Laser Level MR3D5A 08

Kaitian Laser Level MR3D5M 25Kaitian Laser Level MR3D5M base



Kaitian Laser Level MR3D5 pedestal 8.5Kaitian Laser Level MR3D5M interface



Kaitian Laser Level MR3D5L 360 bracket



Kaitian Laser Level AB03 06Kaitian Laser Level AB03 04



Kaitian Laser Level T1503 min maxKaitian Laser Level T1503 VIEW

Kaitian Laser Level T1503 weight



Kaitian 3D Laser Level 12 Lines Model KT-MR3D5LAD KT-MR3D5LAGR  / KT-MR3D5LAFR

Kaitian 3D Laser Level 12 Lines Special Features:

The automatic leveling mode
Once the pendulum is in unlocked condition,the instrument will be self-leveling within 4 degrees, when the
unit is using out of the leveling range,laser lines and main indicator will keep flashing.

Kaitian Laser Level 12 Lines Tilt  Function
When the instrument is in not working status, with lock turned to OFF, press the control panel of the
D key and hold on 3 seconds, when the  D key are flashing,then it goes into Arbitrary angle of a
straight line mode; Press the D key again,the mode will be canceled.
To operate in this slash function, you need an angle adjusted bracket to work with.

Kaitian Laser Level 3D Receiver function
In indoor working radius is 10 meters,if use outdoor receiver working radius can be up to 50 meters.
Note:This link does not include outdoor receiver.
In indoor working radius is 10 meters,if use outdoor receiver working radius can be up to 50 meters.
Outdoor Receiver  frequency   within 4.5 ~ 10 KHZ


Kaitian 3D Laser Level Working Advice
Always use the centre of the lasser line for marking.The width of the laser line changes with the distance.

Safety Notes
The measuring tool produces laser class 2 laser radiation according to IEC 60825-1.This can lead to persons
being blinded,do not direct the laser beam at persons or animals and do not stare into the direct or
reflected laser beam yourself.
Do not let children use the 3D laser level measuring tool without supervision.
Do not operate the measuring tool in explosive environments,such as in the presence of flammabel liquids,
gases or duxts.

Kaitian Laser Level Tripod 12 Lines Application Area
Home improvement,detection and location,lofts and elevations, and all other interior and exterior (with optional
receiver or detector)Construction and layout.


Thank you for choose Kaitian 3D Laser Level 12 Lines 360 Rotary Tripod for Level Nivel Bracket Receiver  Vertical Horizontal Laser Construction Tools
