Oписание продукта

Kaitian Green Laser Level 12 Lines 3D Nivel Laser 360 Rotary Bracket  Vertical Horizontal Construction Tools Tripod for Level 3D





960X400 MR3D5



950x340_01950x340_02950x340_03

Kaitian Green Line Laser Level 12 Lines 3D Nivel Laser  Specification

This laser level has three laser windows, each window can launch 4 laser lines,totally 12 laser lines
( 8 Vertical Line, 4 Horizontal Line,4 laser lines combine to a plane).
Waterproof grade: IP54
Wavelength:532nm<1mw
Laser class:II
Damping Type: Magnetic
Leveling duration:<= 4s
Laser Level Line Width at 10M: 3.5mm
Horizontal,Vertical Precision: +- 2mm @ 10M
Orthotropic accuracy: 90 degree   +-  30"
Leveling Range:  +- 4 (Degree)
Working time:
4 Hrs /1pcs 3.7v/1800mah battery
Working Temperature: 0 to 40    (Centigrade)
Storage Temperature: -20 to 60 (Centigrade)

KaiTian  Green Laser Level 12 Lines Packing List:
Choose different 3D Laser Level Green product models in Color.

4 types of power supply
3.7V  800mAh Rechargeable Lithium Battery x 1pcs,
1.5V  AA batteries ,
1.2V  AA batteries ,
AC 100-240v Adapter

Laser Level automatic leveling mode
Once the pendulum is in unlocked condition,the instrument will be self-leveling within 4 degrees, when the
unit is using out of the leveling range,laser lines and main indicator will keep flickering

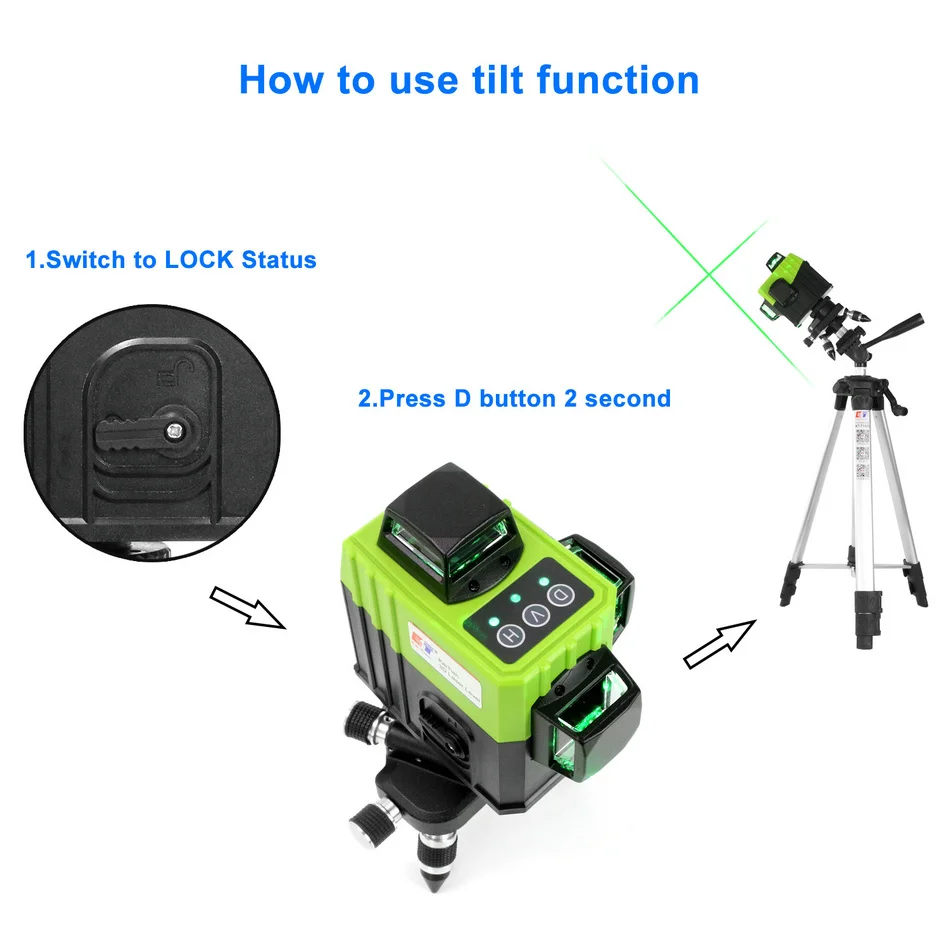

Laser Level Tilt  Function
Switch to Lock Status, Press D button 2 second .
Laser level would not be flickering in any angle.
To operate in this tilt function, you need an angle adjusted bracket to work with it.

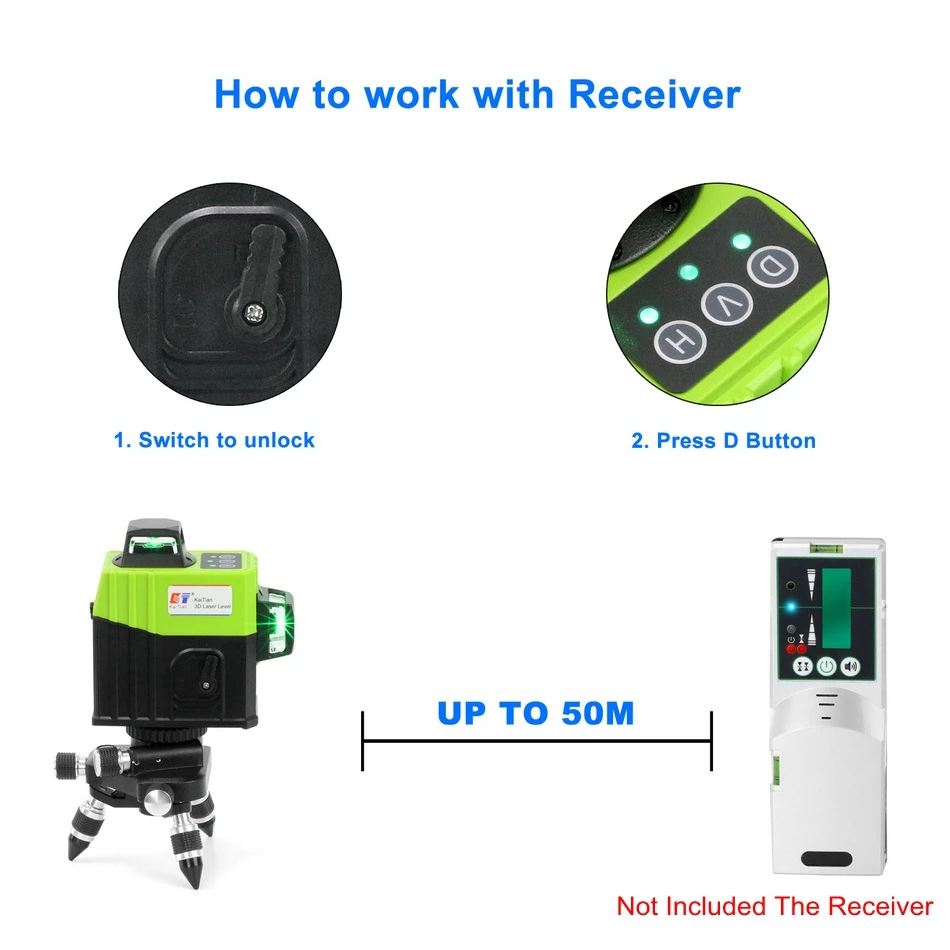

Laser Level Receiver function
In indoor working radius is 10 meters,if use outdoor receiver working radius can be up to 50 meters.
Outdoor Receiver  frequency   within 4.5 ~ 10 KHZ

KaiTian 12Lines 3D Laser Level Tripod Self-Leveling Cross Horizontal 360 Vertical Green Laser x Beam 532nm Line Nivel Level Tool MG3D5 3D

MG3D5K 9KaiTian 12Lines 3D Laser Levels Self-Leveling Cross Horizontal 360 Vertical Green Laser x Beam 532nm Line Lazer Nivel Level Tool OUTDOORKaiTian 12Lines 3D Laser Level Tripod Self-Leveling Cross Horizontal 360 Vertical Green Laser x Beam 532nm Line Nivel Level Tool tilt function AKaiTian 12Lines 3D Laser Levels Self-Leveling Cross Horizontal 360 Vertical Green Laser x Beam 532nm Line Lazer Nivel Level Tool receiver 2

Kaitian Laser Level MG3D5L lines precision

Kaitian Laser Level MG3D5L BATTERY 2









Kaitian Laser Level MG3D5 POWER PLUGS



KaiTian 12 Lines 3D Laser Level Tripod Self-Leveling 360 Horizontal 650nm Vertical Bracket Cross Red Laser Beam Line Level Lazer

Kaitian Green Laser Level 12 Lines 3D Application Area

Home improvement,detection and location,lofts and elevations,and all other interior and exterior (with optional receiver or detector)Construction and layout.


Kaitian Green Laser Level 12 Lines 3D Nivel Laser Working Advice:

Always use the centre of the lasser line for marking.The width of the laser line changes with the distance.

Safety Notes:
The measuring tool produces laser class 2 laser radiation according to IEC 60825-1.This can lead to persons
being blinded,do not direct the laser beam at persons or animals and do not stare into the direct or
reflected laser beam yourself.

Do not let children use the 3D laser level measuring tool without supervision.
Do not operate the measuring tool in explosive environments,such as in the presence of flammabel liquids,
gases or duxts.
